| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,740 pcs
|
10740 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Failure Rate | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of I/O | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| SVHC Present | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

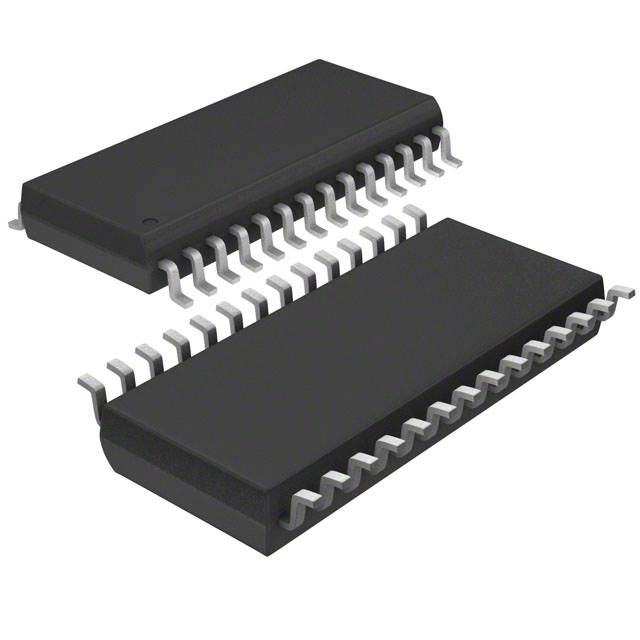

The Cypress Semiconductor CY8C29466-24PVXIT is an 8-Bit microcontroller based on the M8C core, operating at a speed of 24MHz. This device is designed for embedded applications and features 32KB of FLASH program memory and 2KB of RAM.
Key electrical characteristics include a supply voltage range of 3V to 5.25V and support for I2C, SPI, and UART/USART communication interfaces. It is equipped with peripherals such as POR, PWM, and WDT, and offers 24 I/O pins. The microcontroller also includes data converters, with 12x14-bit A/D and 4x9-bit D/A capabilities.
This component is housed in a 28-SSOP package and is designed for surface mounting. The operating temperature range is -40°C to 85°C, making it suitable for a variety of environmental conditions. The internal oscillator type simplifies design considerations.
Environmental compliance includes RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 3 (168 Hours). The REACH status is noted as REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.63 | $6.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 3V to 5.25V.
It is available in a 28-pin SSOP package (0.209" width, 5.30mm) for surface mount.
The operating temperature range is -40°C to +85°C.
The core processor is an 8-bit M8C.
24 MHz.
32 KB.
24 I/O pins.
