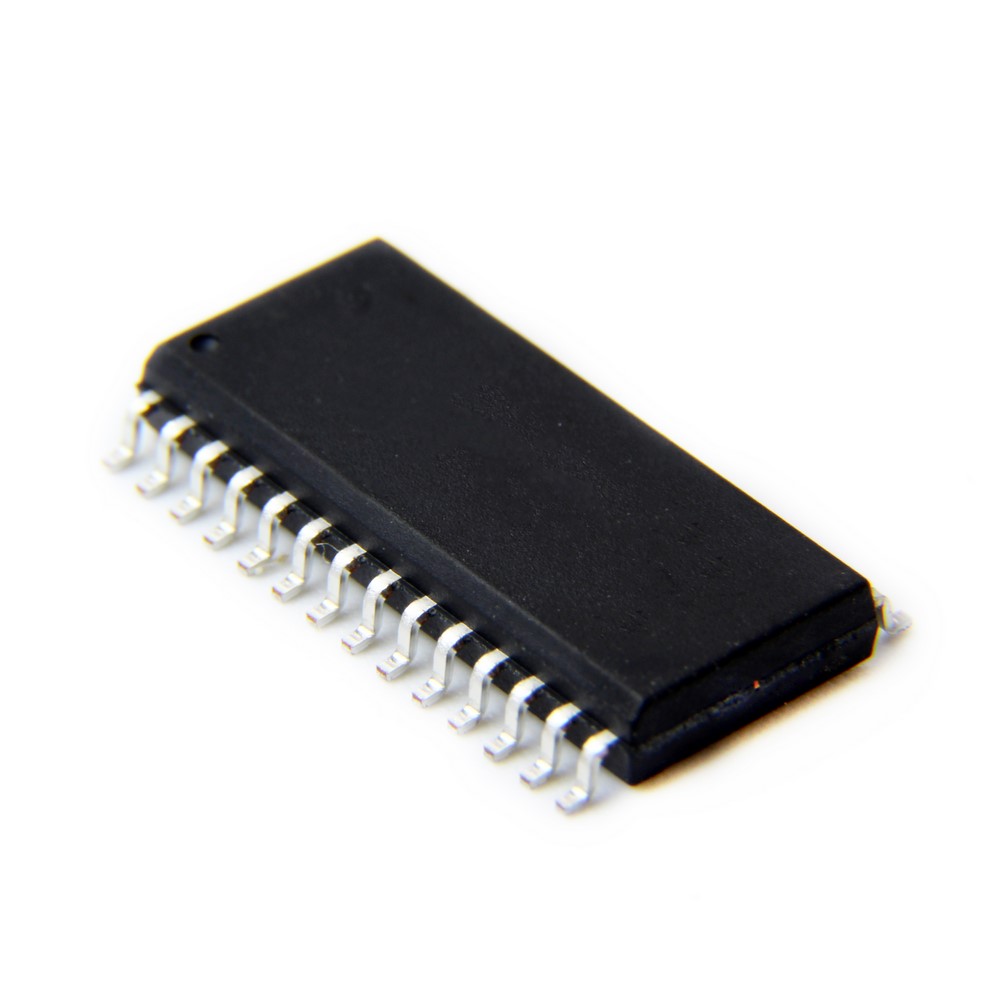

CY8C24423A-24SXI The Infineon CY8C24423A-24SXI is an 8-bit microcontroller featuring 4KB of Flash memory and 256 bytes of SRAM. It operates at a maximum clock frequency of 24 MHz.
Mfr Part #:

CY8C24423A-24SXI

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon CY8C24423A-24SXI is an 8-bit microcontroller featuring 4KB of Flash memory and 256 bytes of SRAM. It operates at a maximum clock frequency of 24 MHz.
✓ Total Stock: 163 pcs
$ Price Range: $2.50

CY8C24423A-24SXI Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
163 pcs
On Request
163 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CY8C24423A-24SXI Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Operating Temperature
Program Memory Size
Program Memory Type
Storage Temperature
Tape & Reel
View Similar Products (0)

CY8C24423A-24SXI Description

Short technical summary and product information.

The CY8C24423A-24SXI from Infineon is an 8-bit microcontroller belonging to the M8C processor series. It offers 4KB of programmable Flash memory and 256 bytes of SRAM, making it suitable for various embedded applications.



Key electrical specifications include a maximum clock frequency of 24 MHz, a supply voltage range of 2.4V to 5.25V, and support for I2C, SPI, and UART interfaces. The microcontroller also features a 14-bit ADC with 6 channels and 2 timers/counters.



This component is housed in an SO-28 package and operates within a temperature range of -40°C to +85°C. Its robust feature set makes it a versatile choice for designers requiring a compact and capable 8-bit MCU.

CY8C24423A-24SXI Quick Information

Product Type: 8-bit Microcontroller
Canonical Name: CY8C24423A-24SXI 8-bit Microcontroller
Subcategory: 8-bit Microcontroller

CY8C24423A-24SXI Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CY8C24423A-24SXI Estimated Pricing

Qty Low High
1+ $2.50 $2.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

CY8C24423A-24SXI Features

  • 8-bit microcontroller with M8C processor series.
  • 4KB Flash program memory and 256B SRAM.
  • Maximum clock frequency of 24 MHz.
  • Integrated 14-bit ADC with 6 channels.
  • Supports I2C, SPI, and UART interfaces.

CY8C24423A-24SXI Applications

  • Embedded control systems with programmable logic
  • Industrial automation and instrumentation
  • Consumer electronics requiring microcontroller features
  • Data acquisition and sensor interfacing

CY8C24423A-24SXI FAQs

5 frequently asked questions generated from this part’s specifications.
What is the program memory size of the CY8C24423A-24SXI?

The CY8C24423A-24SXI has a program memory size of 4 kB.

What is the data RAM size for this microcontroller?

The data RAM size for the CY8C24423A-24SXI is 256 B.

What is the maximum operating temperature for the CY8C24423A-24SXI?

The maximum operating temperature for the CY8C24423A-24SXI is +85 °C.

What interfaces does the CY8C24423A-24SXI support?

The CY8C24423A-24SXI supports I2C, SPI, and UART interfaces.

What is the ADC resolution of this 8-bit microcontroller?

The ADC resolution of the CY8C24423A-24SXI is 14 bit.
