| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,374 pcs
|
6374 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Size | |
| Mounting Type | |
| Operating Voltage | |
| Peripherals | |
| RAM Size | |
| Temperature Range |

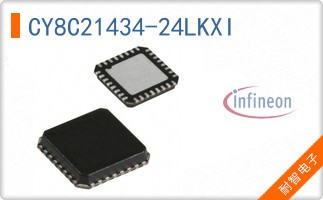

The Cypress Semiconductor CY8C21434-24LKXI is an 8-bit microcontroller based on the M8C core, designed for embedded applications. It operates at a clock speed of up to 24MHz and includes 8KB of Flash memory for program storage. The device provides 28 general-purpose I/O pins, allowing for flexible interfacing with external components.
This microcontroller supports a wide operating voltage range from 2.4V to 5.25V, making it suitable for various power environments. It is equipped with essential peripherals such as I2C, SPI, and UART/USART interfaces, along with POR, PWM, and WDT functions. The integrated 28-channel, 8-bit Analog-to-Digital converter (ADC) enables analog signal acquisition.
The CY8C21434-24LKXI is available in a 32-QFN package and is designed for surface mounting. It operates within a temperature range of -40°C to 85°C (TA). The device also includes 512 Bytes of RAM and EEPROM for data storage.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.73 | $5.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The core size is 8-Bit.
The maximum clock speed is 24MHz.
It has 28 I/O pins.
The Flash memory size is 8KB.
The operating voltage range is 2.4V to 5.25V.
The operating temperature range is -40°C to 85°C.
It is available in a 32-QFN and 32-UFQFN package.
