| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,232 pcs
|
7232 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage |
The Cypress Semiconductor CY7C66013C-PVXC is an 8-bit USB-optimized microcontroller featuring an integrated USB hub, designed for full-speed (12 Mbps) USB communication. This device is well-suited for creating USB compound devices, such as keyboards with integrated hub functionality.
Key internal features include 256 bytes of RAM and 8 kB of PROM for program storage. It supports USB Specification Version 1.1 and USB HID Specification Version 1.1. The controller includes an integrated master and slave I2C compatible controller operating at 100 kHz, accessible via GPIO pins. It also offers a Hardware Assisted Parallel Interface (HAPI) for efficient data transfer to external devices.
The CY7C66013C-PVXC provides multiple GPIO ports, with some capable of sinking up to 8 mA and a specific port capable of sinking 12 mA for high-current applications like LEDs. It features a 12-bit free-running timer with microsecond clock ticks and an internal watchdog timer. The device operates within a voltage range of 4.0 V to 5.5 V DC and a temperature range of 0 °C to 70 °C.

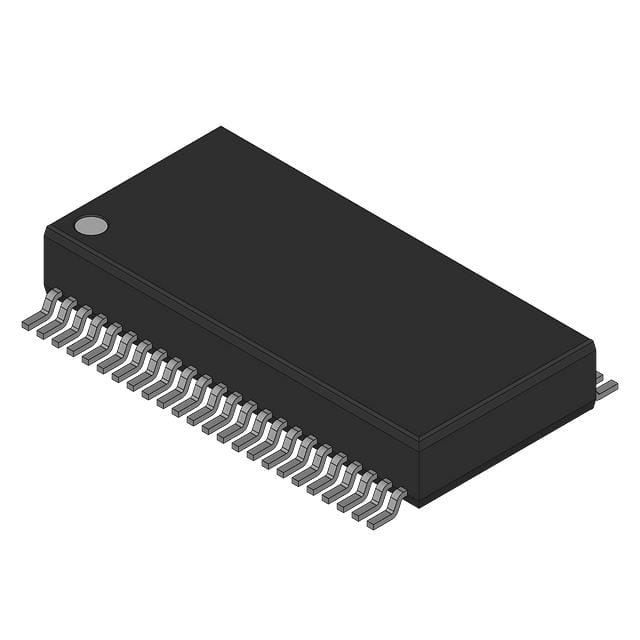

This component is available in a 48-pin SSOP package. The integrated hub supports up to four downstream USB ports, with GPIO pins offering individual power control and overcurrent detection for each port. Improved output drivers are incorporated to reduce electromagnetic interference (EMI).
The operating voltage range is 4.0 V to 5.5 V DC.
The operating temperature range is 0 °C to 70 °C.
It complies with USB Specification Version 1.1 and USB HID Specification Version 1.1.
It has 256 bytes of RAM and 8 kB of PROM.
The CY7C66013C-PVXC is available in a 48-pin SSOP package.
