| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
680 pcs
|
680 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
646 pcs
|
646 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Interface | |
| Lead Spacing | |
| Operating Temperature | |
| Protocol | |
| Standards | |
| Supplier Device Package | |
| Voltage |

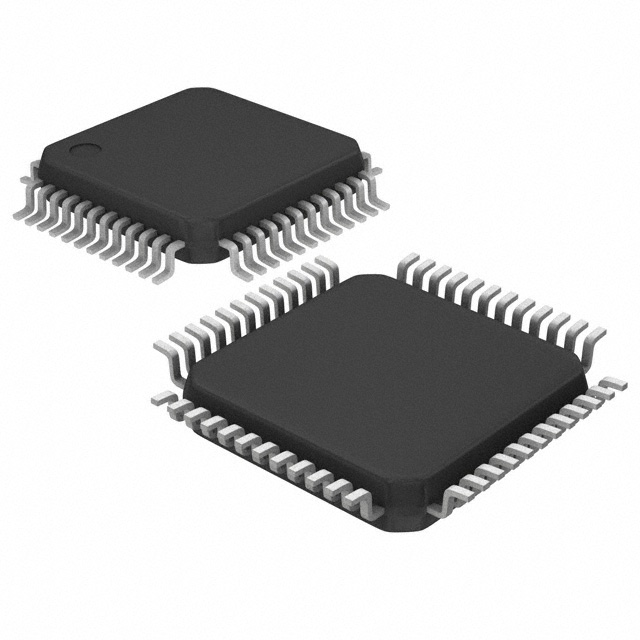

The Infineon Technologies CY7C65642-48AXC is a highly integrated, low-power USB 2.0 hub controller designed for cost-effective applications. It is compliant with the USB 2.0 specification and offers multiple transaction translators (TT), one per downstream port, for maximum performance.
This controller supports up to four downstream ports, which are backward compatible with FS and LS speeds. It features very low-power consumption and supports both bus-powered and self-powered modes with auto-switching. The device requires a single 5V power supply, with an internal regulator, and can also accommodate a 3.3V supply with an external regulator.
Key features include integrated upstream pull-up and downstream pull-down resistors, as well as upstream/downstream termination resistors. It also has integrated port status indicator control. The CY7C65642-48AXC is available in a space-saving 48-lead TQFP package (7x7 mm) and operates within a temperature range of 0°C to +70°C.
Applications for this device family include docking stations, standalone hubs, monitor hubs, multi-function printers, digital televisions, advanced port replicators, keyboard hubs, and gaming consoles.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.82 | $3.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is 0°C to 70°C.
The voltage range is 3.15V to 5.25V.
It is available in a 48-TQFP (7x7 mm) package.
It complies with the USB 2.0 specification.
It supports up to four downstream ports.
It supports both bus-powered and self-powered modes.
