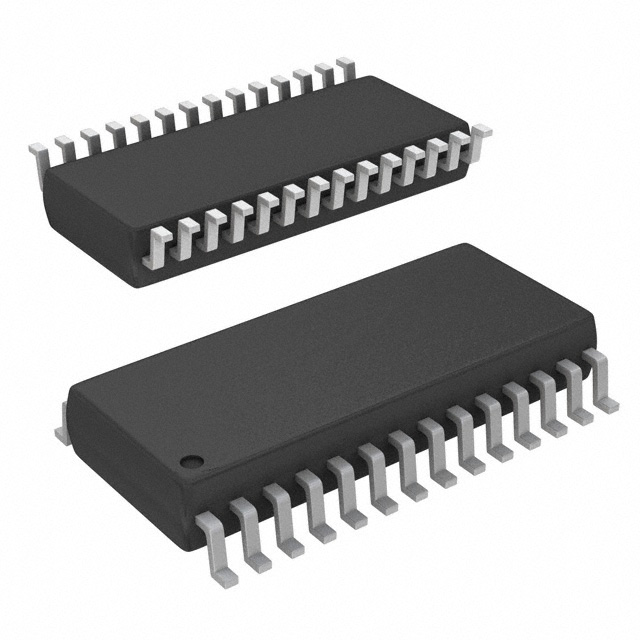

CY62256LL-70SNC The Infineon Technologies CY62256LL-70SNC is a 256Kbit asynchronous SRAM with a 70ns access time. It operates within a voltage range of 4.5V to 5.5V and is available in a 28-SOIC package.
Mfr Part #:

CY62256LL-70SNC

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies CY62256LL-70SNC is a 256Kbit asynchronous SRAM with a 70ns access time. It operates within a voltage range of 4.5V to 5.5V and is available in a 28-SOIC package.
✓ Total Stock: 20,000 pcs
$ Price Range: $1.28

CY62256LL-70SNC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CY62256LL-70SNC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Access Time
Lead Spacing
Lead Style
Memory Format
Memory Interface
Memory Organization
Memory Size
Memory Type
Mounting Type
Operating Temperature
Speed
Supplier Device Package
Supplier Package
Technology
Voltage
Voltage Range
Write Cycle Time
View Similar Products (0)

CY62256LL-70SNC Description

Short technical summary and product information.

The CY62256LL-70SNC is a high-performance CMOS static RAM from Infineon Technologies, organized as 32K words by 8 bits, providing a total memory size of 256Kbit. This asynchronous SRAM features a fast access time of 70 ns and operates reliably within a voltage range of 4.5V to 5.5V.



Designed for ease of memory expansion, it includes active LOW chip enable (CE) and output enable (OE) features. The device also incorporates an automatic power-down function, significantly reducing power consumption when deselected. Its TTL-compatible inputs and outputs ensure broad system compatibility.



The CY62256LL-70SNC is supplied in a 28-lead SOIC package, suitable for surface mounting. It operates within a commercial temperature range of 0°C to 70°C (TA). This SRAM is ideal for applications requiring efficient and reliable data storage with moderate speed requirements.

CY62256LL-70SNC Quick Information

Product Type: SRAM
Canonical Name: CY62256LL-70SNC 256Kbit Parallel SRAM
Subcategory: Asynchronous SRAM

CY62256LL-70SNC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CY62256LL-70SNC Estimated Pricing

Qty Low High
1+ $1.28 $1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

CY62256LL-70SNC Features

  • 256Kbit asynchronous SRAM
  • 70ns maximum access time
  • 4.5V to 5.5V operating voltage
  • Automatic power-down feature
  • 28-SOIC surface mount package

CY62256LL-70SNC Applications

  • Memory expansion applications
  • Data storage systems
  • Embedded systems
  • Consumer electronics

CY62256LL-70SNC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the memory size of the CY62256LL-70SNC?

The memory size is 256Kbit, organized as 32K words by 8 bits (32K x 8).

What is the access time?

The access time is 70 nanoseconds (70ns).

What is the operating voltage range?

The operating voltage range is 4.5V to 5.5V.

What is the operating temperature range?

The commercial operating temperature range is 0°C to 70°C.

What package does the CY62256LL-70SNC come in?

It comes in a 28-SOIC (28-lead narrow SOIC) surface mount package.

What is the power consumption of this SRAM?

Active power is 275mW (max), standby power is 28µW (max) for the LL version.

What memory interface does it use?

It uses a parallel memory interface.
