| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Input Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Supply Voltage |
The Infineon CY2CP1504ZXC is a clock buffer and driver IC designed for efficient signal distribution in electronic systems. It operates with a maximum frequency of 250 MHz, supporting high-speed clocking requirements.
This device features an LVCMOS input and LVPECL output, providing compatibility with various logic families. The supply voltage range is from 2.375V to 3.465V, making it suitable for a wide array of applications. The operating temperature range is 0°C to 70°C, ensuring reliable performance under typical environmental conditions.

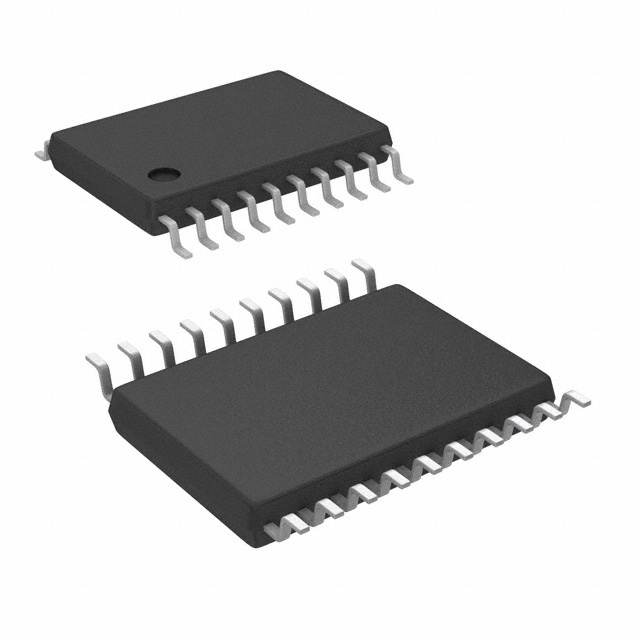

The CY2CP1504ZXC is housed in a 20-TSSOP surface mount package, facilitating integration into compact PCB designs. Its input-to-output ratio is 2:4, allowing for signal fanout. The component is classified under RoHS3 compliance and has a Moisture Sensitivity Level (MSL) of 1.
This clock buffer/driver is suitable for applications requiring precise clock signal distribution, such as in telecommunications, computing, and industrial control systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum operating frequency is 250 MHz.
It features an LVCMOS input and an LVPECL output.
The supply voltage range is 2.375V to 3.465V.
The operating temperature range is 0°C to 70°C.
It is available in a 20-TSSOP package for surface mounting.
The RoHS status is ROHS3 Compliant.
The Moisture Sensitivity Level is 1 (Unlimited).
