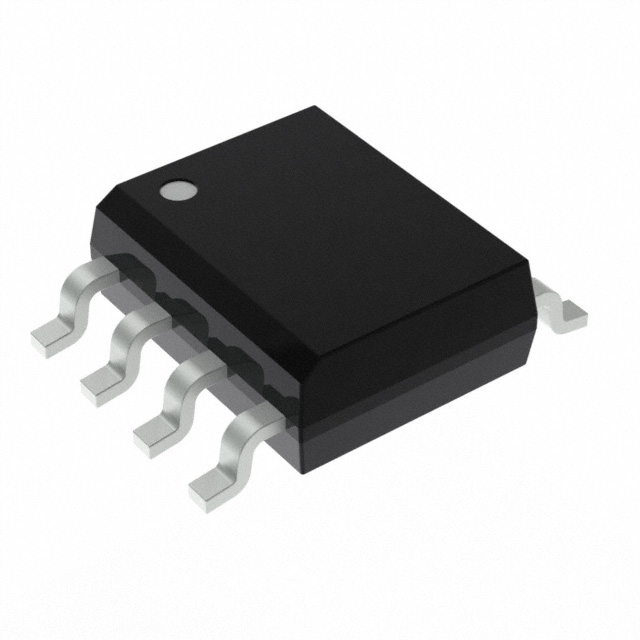

CY23EP05SXC The Cypress Semiconductor CY23EP05SXC is a fanout buffer and zero delay buffer IC. It operates with a maximum frequency of 220MHz and supports LVCMOS/LVTTL inputs and LVCMOS outputs.
Mfr Part #:

CY23EP05SXC

Available from 1 distributors
Mfr Name: Cypress Semiconductor
Cypress Semiconductor
The Cypress Semiconductor CY23EP05SXC is a fanout buffer and zero delay buffer IC. It operates with a maximum frequency of 220MHz and supports LVCMOS/LVTTL inputs and LVCMOS outputs.
✓ Total Stock: 200,000 pcs
$ Price Range: $5.00

CY23EP05SXC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
200,000 pcs
On Request
200000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CY23EP05SXC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input
Mounting Type
Number of Circuits
Operating Temperature
Output
PLL
Supplier Device Package
Type
Voltage Supply
View Similar Products (0)

CY23EP05SXC Description

Short technical summary and product information.

The Cypress Semiconductor CY23EP05SXC is an integrated circuit designed as a fanout buffer and zero delay buffer. It supports a maximum frequency of 220MHz, making it suitable for clock distribution applications.



This component features LVCMOS and LVTTL compatible inputs, with LVCMOS outputs. It operates with a supply voltage of 2.5V or 3.3V and has a maximum operating temperature range of 0°C to 70°C. The device is configured with one circuit and offers an input to output ratio of 1:5.



The CY23EP05SXC is available in an 8-SOIC surface mount package. Its specifications indicate it is ROHS3 Compliant, with a Moisture Sensitivity Level (MSL) of 3 (168 Hours), and REACH Unaffected status.

CY23EP05SXC Quick Information

Product Type: Fanout Buffer
Series: CY23EP05
Canonical Name: CY23EP05SXC Fanout Buffer
Subcategory: PLL

CY23EP05SXC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 3 (168 Hours)
REACH Status: REACH Unaffected

CY23EP05SXC Estimated Pricing

Qty Low High
1+ $5.00 $5.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

CY23EP05SXC Features

  • Fanout buffer and zero delay buffer IC.
  • Maximum frequency of 220MHz.
  • Supports LVCMOS/LVTTL inputs.
  • LVCMOS outputs.
  • Available in 8-SOIC package.

CY23EP05SXC Applications

  • Clock distribution for high-speed digital systems.
  • Zero delay buffering of LVCMOS clock signals.
  • Fanout buffering in FPGA and ASIC designs.
  • Synchronous clock generation for communication interfaces.
  • PLL-based clock alignment in 3.3V systems.

CY23EP05SXC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum frequency for the CY23EP05SXC?

The maximum frequency for the CY23EP05SXC is 220MHz.

What are the input and output signal types for the CY23EP05SXC?

The CY23EP05SXC supports LVCMOS and LVTTL inputs, and LVCMOS outputs.

What is the operating voltage range for the CY23EP05SXC?

The CY23EP05SXC operates with a supply voltage of 2.5V or 3.3V.

What is the operating temperature range for the CY23EP05SXC?

The operating temperature range for the CY23EP05SXC is 0°C to 70°C.

What type of package is the CY23EP05SXC available in?

The CY23EP05SXC is available in an 8-SOIC package.

What is the RoHS status of the CY23EP05SXC?

The CY23EP05SXC is ROHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the CY23EP05SXC?

The Moisture Sensitivity Level (MSL) for the CY23EP05SXC is 3 (168 Hours).
