Mfr Part #:

CXD5148GG

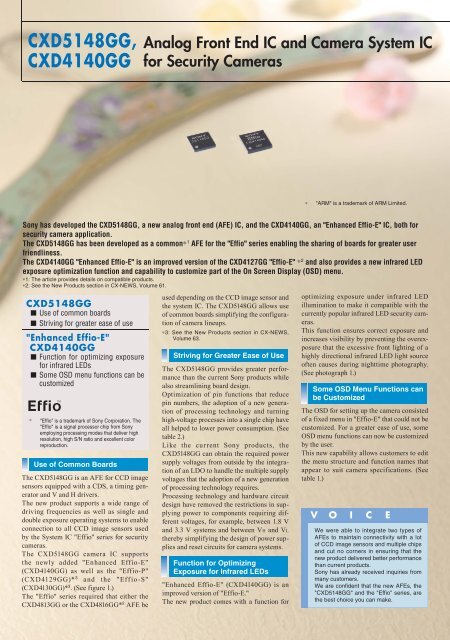

The Sony CXD5148GG is an Analog Front End (AFE) IC designed for security camera applications. It is part of the Effio series, enabling common board usage for enhanced user-friendliness.

✓ Total Stock: 5,288 pcs

$ Price Range: $1.17

CXD5148GG Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	5,190 pcs On Request	5190 pcs	On Request	1	On Request	On Request	16+	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	98 pcs On Request	98 pcs	On Request	1	On Request	On Request	19/20+	On Request	On Request

CXD5148GG Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Sony Corporation

View Similar Products (0)

CXD5148GG Description

Short technical summary and product information.

The Sony CXD5148GG is an Analog Front End (AFE) IC specifically developed for security camera applications. It integrates a CDS, a timing generator, and V and H drivers, supporting a wide range of driving frequencies and both single and double exposure operating systems. This design allows for connection to all CCD image sensors used by the System IC "Effio" series.

The CXD5148GG is designed to be a common AFE for the "Effio" series, facilitating the sharing of boards and simplifying camera lineup configurations. It is compatible with the "Enhanced Effio-E" (CXD4140GG), as well as the "Effio-P" and "Effio-S".

The companion CXD4140GG "Enhanced Effio-E" IC offers an infrared LED exposure optimization function and the capability to customize parts of the On Screen Display (OSD) menu. The "Effio" series itself is known for delivering high resolution, a high S/N ratio, and excellent color reproduction through its advanced processing modes.

CXD5148GG Quick Information

Product Type: Analog Front End IC

Series: Effio

Canonical Name: CXD5148GG Analog Front End IC

Subcategory: Camera System IC

CXD5148GG Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

CXD5148GG Estimated Pricing

Qty	Low	High
1+	$1.17	$1.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

CXD5148GG Features

Analog Front End IC for security cameras.
Integrates CDS, timing generator, and drivers.
Supports wide driving frequencies and exposure modes.
Common board design for Effio series compatibility.
Features infrared LED exposure optimization.

CXD5148GG Applications

Used in security camera systems.
Enables high resolution and color reproduction.
Facilitates common board configurations.
Supports various CCD image sensors.

CXD5148GG FAQs

7 frequently asked questions generated from this part’s specifications.

What is the Sony CXD5148GG?

The Sony CXD5148GG is an Analog Front End (AFE) IC designed for security camera applications, part of the "Effio" series.

What are the key integrated components in the CXD5148GG?

The CXD5148GG is equipped with a CDS, a timing generator, and V and H drivers.

What exposure operating systems does the CXD5148GG support?

The CXD5148GG supports both single and double exposure operating systems.

Does the CXD5148GG have features for infrared lighting?

Yes, the companion CXD4140GG "Enhanced Effio-E" IC provides an infrared LED exposure optimization function.

Can the On Screen Display (OSD) menu be customized with the CXD5148GG?

Yes, the CXD4140GG "Enhanced Effio-E" IC offers the capability to customize part of the On Screen Display (OSD) menu.

What is the RoHS status of the CXD5148GG?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the CXD5148GG?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
