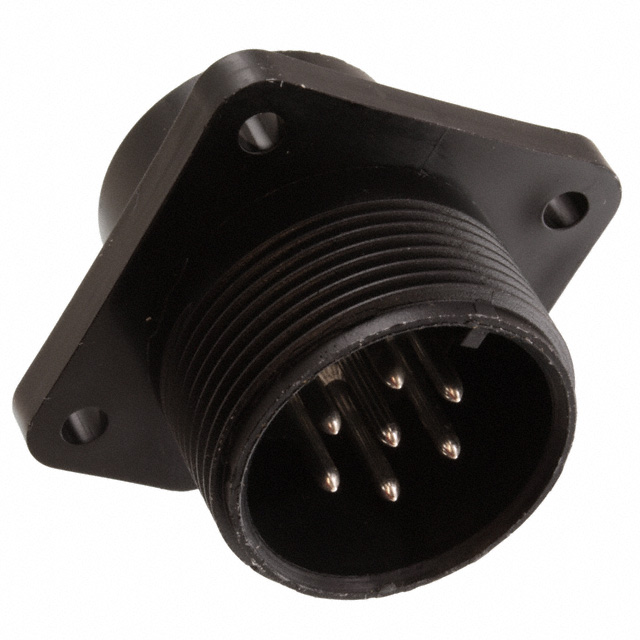

The Conxall/Switchcraft CXC3102A16S1S is a 7-position circular connector receptacle designed for rugged applications. It features female sockets with silver-plated crimp contacts, providing reliable electrical connections. The connector is panel mounted with a flange and uses a threaded coupling for secure mating.
This connector is part of the MIL-E-QUAL series, offering first mate last break contact protection. It is rated for 500V AC/DC and can handle currents from 3.4 to 23.0 A depending on contact size. The operating temperature range is -40°C to +75°C (per datasheet) or -40°C to +125°C (per existing data). It has an IP67 rating when overmolded, making it suitable for outdoor and harsh environments.
The shell is made of black polyamide (nylon) with UV inhibitor, and the connector is unshielded. It has a keyed orientation to prevent misalignment. The contact size is #16 AWG, and the connector is designed for crimp termination. It is RoHS3 compliant (unverified) and has a durability of 300 mate/unmate cycles.
7 positions.
3.4 to 23.0 A, depending on contact size and configuration.
500V AC/DC.
Panel mount with flange.
Yes, it has an IP67 rating when overmolded.
-40°C to +75°C (per datasheet) or -40°C to +125°C (per existing data).
Silver.
