| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimming Control | |
| Height | |
| Humidity Range | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

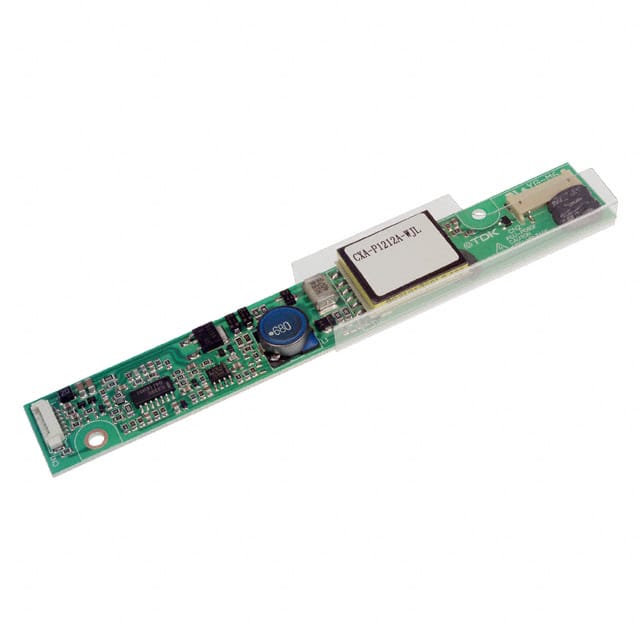

The TDK Corporation CXA-P1212A-WJL is a DC to AC inverter from the CXA Series, suitable for CCFL and UV lamps. It operates with a 12V input voltage and provides an output of 1700V. This inverter is designed for through-hole mounting and offers dimming control capabilities, supporting a range of 0 to 1.6V or 0 to 10kΩ.
With a length of 147mm, width of 21.5mm, and height of 10mm, this unit is built for integration into various electronic systems. It operates within a temperature range of -10°C to +70°C and a humidity range of up to 95% RH. The inverter includes features such as an overcurrent protection circuit and a current feedback illumination stabilization circuit for stable brightness.
Applications for this inverter include various types of color liquid crystal displays, computer touch panels, controllers, medical devices, ATMs, POS terminals, and telecommunication terminals.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal input voltage is 12V.
The output voltage is 1700V.
Dimming can be controlled using either a voltage input from 0 to 1.6V or a resistance input from 0 to 10kΩ.
The operating temperature range is from -10°C to +70°C.
The dimensions are 147mm in length, 21.5mm in width, and 10mm in height.
