| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,934 pcs
|
2934 pcs | On Request | 1 | On Request | On Request | 06+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Current Rating | |
| Failure Rate | |
| Insulation Color | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

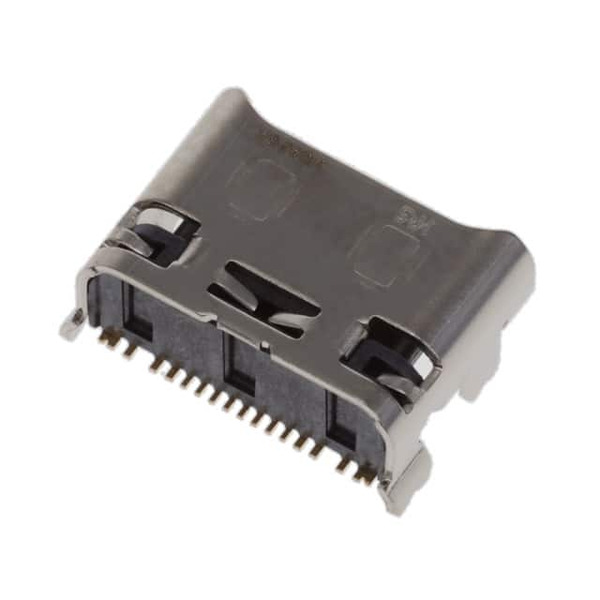

The Conexant Systems CX90411-11Z is a USB Type-C (USB 3.2) receptacle connector. It supports USB 2.0 interface standards and is designed for reliable signal and power connections.
This connector features 24 contacts, including 16 active and 8 dummy contacts for mechanical stability. It has a current rating of 5A and a voltage rating of 20VAC, making it suitable for high-speed charging and data transfer.
The CX90411-11Z is constructed with a durable steel and stainless steel shell for effective shielding. The housing is black thermoplastic with a UL94 V-0 flammability rating. It is designed for surface mount, right-angle installation and offers horizontal, reversible mounting.
Key specifications include gold-plated contacts for optimal conductivity, a wide operating temperature range of -40°C to 85°C, and a mating cycle rating of up to 10,000 cycles. The connector is supplied in tape and reel packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.08 | $2.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The interface standard is USB 2.0 and USB Type-C (USB 3.2).
It has 24 contacts, comprising 16 active and 8 dummy contacts.
The current rating is 5A.
The voltage rating is 20VAC.
It supports surface mount, right angle, and through hole mounting.
The operating temperature range is from -40°C to 85°C.
The housing has a UL94 V-0 flammability rating.
