Mfr Part #:

CX80B1-24P

Name: CX80B1-24P
Brand: Hirose Electric
SKU: CX80B1-24P

Mfr Name: Hirose Electric

Description:

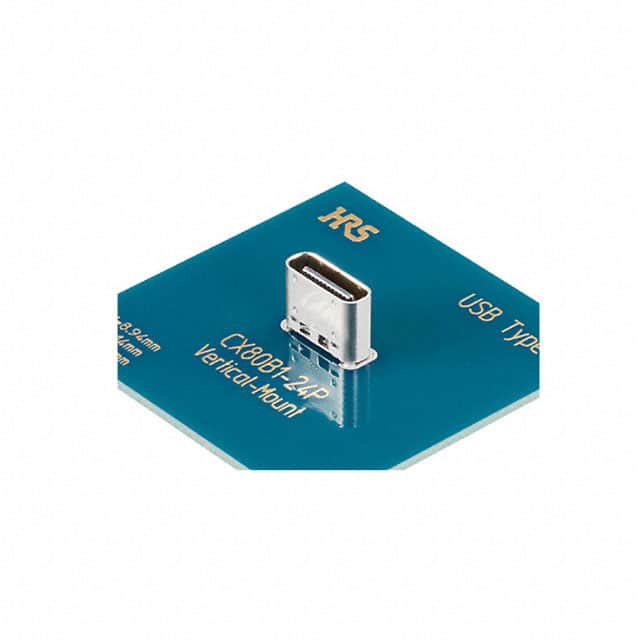

CONN RCPT USB3.1 TYPE C SMT VERT

Stock on Request

CX80B1-24P Description

Short technical summary and product information.

CONN RCPT USB3.1 TYPE C SMT VERT

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	USB, DVI, HDMI Connector Assemblies
Manufacturer Name	Hirose Electric
Connector Type	USB-C (USB TYPE-C)
Current Rating (Amps)	0.25A, 1.25A
Gender	Receptacle
Mating Cycles	10000
Mounting Feature	Reversible, Vertical
Mounting Type	Surface Mount, Through Hole
Number of Contacts	24
Number of Ports	1
Operating Temperature	-40°C ~ 85°C
Shielding	Shielded
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder
Voltage	20VAC
