| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
510 pcs
|
510 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Type | |
| Width |

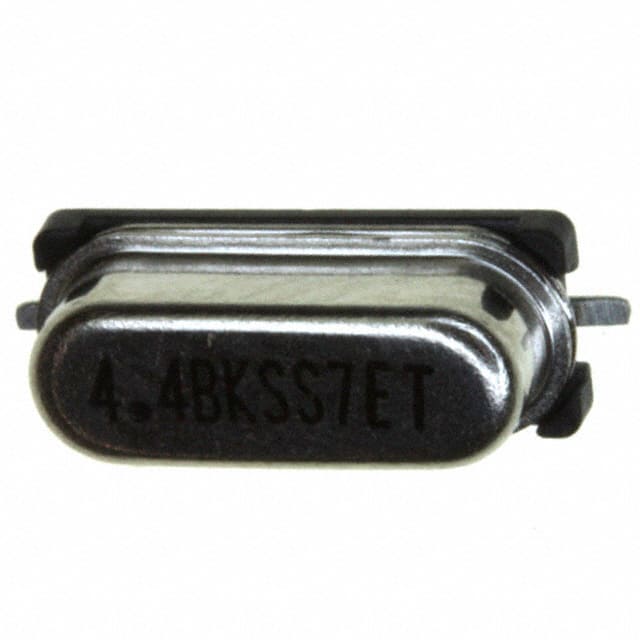

The Kyocera AVX CX49GFNB20000H0PESZZ is a surface-mount MHz crystal in the HC-49/US package. It operates at a fundamental frequency of 20 MHz with a load capacitance of 12pF.
The crystal offers a frequency tolerance of ±50ppm and frequency stability of ±50ppm over the operating temperature range of -10°C to +70°C. Its equivalent series resistance (ESR) is 50 Ohms.
The component is designed for surface-mount assembly and has dimensions of 10.80mm x 4.50mm x 4.50mm. It is RoHS compliant and REACH unaffected.
HC-49/US surface-mount package.
-10°C to +70°C.
Yes, it is RoHS compliant.
20 MHz.
12pF.
±50ppm for both tolerance and stability.
50 Ohms.
