| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Drive Level | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| Standard Package Quantity | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Width | |
| frequency_temperature_stability (Nominal @ -10 to +70 °C) | |
| frequency_temperature_stability (Nominal @ -30 to +85 °C) | |
| frequency_temperature_stability (Nominal @ -40 to +125 °C) | |
| motional_series_resistance (Maximum @ 12000 ≤ f_nom < 16000 kHz) | |
| motional_series_resistance (Maximum @ 16000 ≤ f_nom < 26000 kHz) | |
| motional_series_resistance (Maximum @ 26000 ≤ f_nom < 30000 kHz) | |
| motional_series_resistance (Maximum @ 30000 ≤ f_nom ≤ 54000 kHz) | |
| storage_temperature_range (@ EJ/LJ options) | |
| storage_temperature_range (@ SS option) |

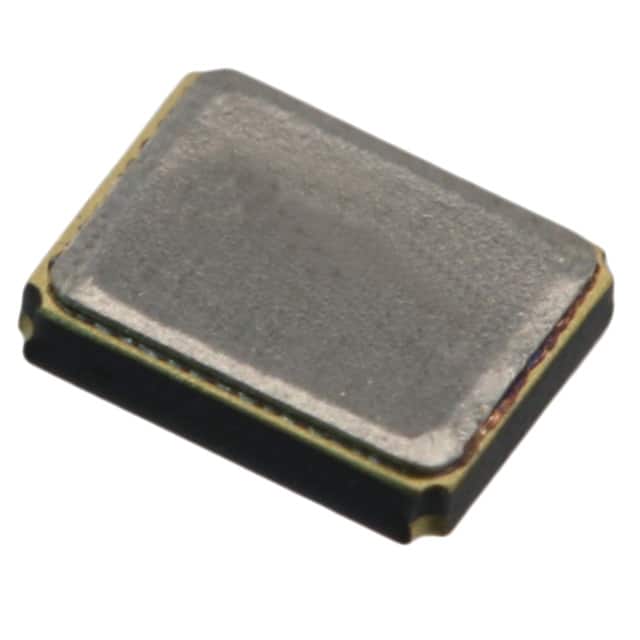

The Kyocera AVX CX2520DB38400D0FLJCC is a 38.4 MHz fundamental mode quartz crystal in a compact 2.5 mm x 2.0 mm x 0.55 mm 4-SMD, no lead package. It features a load capacitance of 8 pF, frequency tolerance of ±15 ppm, and frequency stability of ±15 ppm over the operating temperature range of -30°C to +85°C. The equivalent series resistance is 50 Ω maximum, with a drive level of 10 μW (100 μW max).
This crystal is part of the CX2520DB series designed for consumer products, digital electronics, mobile communications, Bluetooth, wireless LAN, and automotive applications (AEC-Q200 qualified). It is RoHS compliant and supplied in tape and reel packaging with standard quantities of 1000 or 3000 pieces per reel.
The crystal is packaged in a 4-SMD, No Lead ceramic package measuring 2.50 mm x 2.00 mm x 0.55 mm.
The operating temperature range is -30°C to +85°C.
Yes, it is stated as RoHS3 compliant, but this is unverified (no certificate URL available).
The frequency tolerance is ±15 ppm at 25°C ±3°C, as per the manufacturer datasheet.
The load capacitance is 8 pF.
The maximum ESR for this frequency range (30-54 MHz) is 50 Ω.
Standard packaging is tape and reel with 1000 pieces per reel; 3000 pieces per reel is also available.
