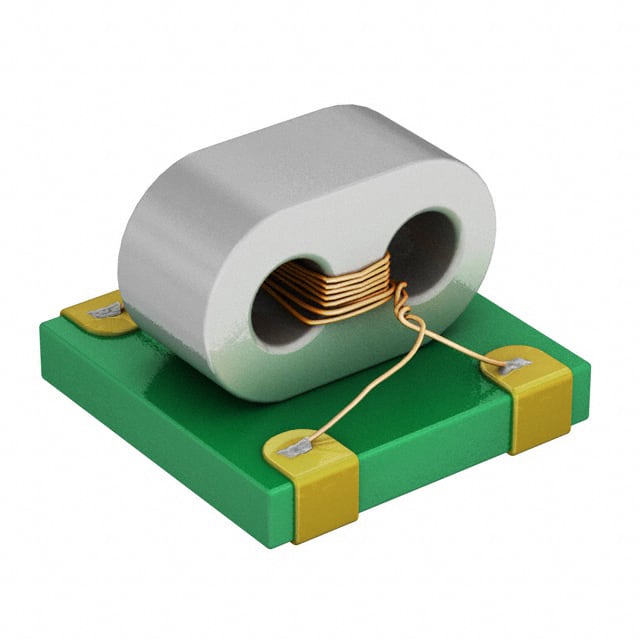

The Pulse Electronics CX2024NLT is a surface mount balun designed for RF applications. It covers a wide frequency range from 50MHz to 1GHz, making it suitable for various signal processing tasks. The balun offers a nominal impedance of 75 Ohms on both ports, with a minimum return loss of -20dBm and a maximum insertion loss of 1.0dB.
This component is housed in a 6-SMD module package, designed for surface mounting. Its construction and specifications make it a reliable choice for applications requiring impedance matching and signal balancing within the specified frequency spectrum. The RoHS3 compliant status indicates adherence to environmental regulations.
Key electrical characteristics include its broad frequency coverage and defined impedance matching capabilities. The low insertion loss ensures signal integrity, while the high return loss signifies efficient power transfer. The surface mount package facilitates integration into compact PCB designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CX2024NLT balun operates from 50MHz to 1GHz.
The impedance is 75 / 75Ohm.
The maximum insertion loss is 1.0dB.
The minimum return loss is -20dBm.
It is a 6-SMD Module package.
It is designed for Surface Mount.
