| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Cooling Type | |
| Efficiency | |
| Failure Rate | |
| Height | |
| Input Connector | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

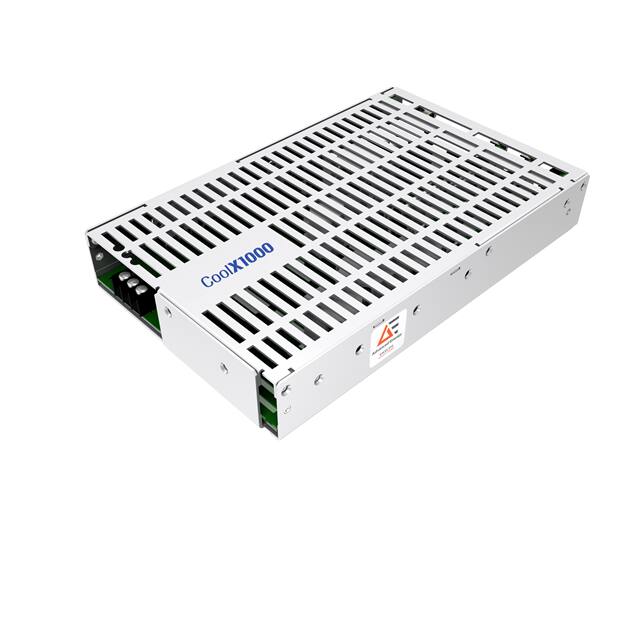

The Advanced Energy CoolX®1000 series CX10M-000000-N4A is a fanless, intelligent 1000 W modular power supply chassis. Packaged in a compact U-channel design, it provides up to 1000 W without requiring fan or base plate cooling, making it suitable for applications sensitive to acoustic noise or vibration.
This power supply chassis operates with an input voltage range of 85-264 VAC and boasts an efficiency of 93%. It features 6 slots for configurable modules and offers a wide operating temperature range of -40°C to 85°C with derating. The design includes high-input surge protection up to 4 kV line to PE and meets various medical, industrial, and defense/aero certifications.
Key specifications include a height of 40.6 mm, length of 254.0 mm, and width of 165.1 mm. It supports base/side and DIN-Rail mounting options and uses screw terminal input connectors. The MTBF is rated at over 2,900,000 hours, highlighting its reliability.
Typical applications include clinical diagnostic equipment, medical lasers, industrial machines, automation equipment, and telecommunications. Its flexibility allows for analog and digital management via PMBus™ monitoring and control capabilities.
The CX10M-000000-N4A accepts 85~264 VAC or 120~300 VDC input.
The chassis supports base, side, and DIN-rail mounting with screw terminal input connectors. It is packaged in bulk.
The operating temperature range is -40°C to 85°C with derating.
It meets IEC60601-1 3rd edition and IEC60601-1-2 4th edition (medical), IEC60950 and IEC62368-1 (industrial), and MIL-STD-810G (defense/aerospace).
The CX10M-000000-N4A achieves 93% efficiency.
MTBF is greater than 2,900,000 hours.
Dimensions are 254.0mm (L) x 165.1mm (W) x 40.6mm (H).
