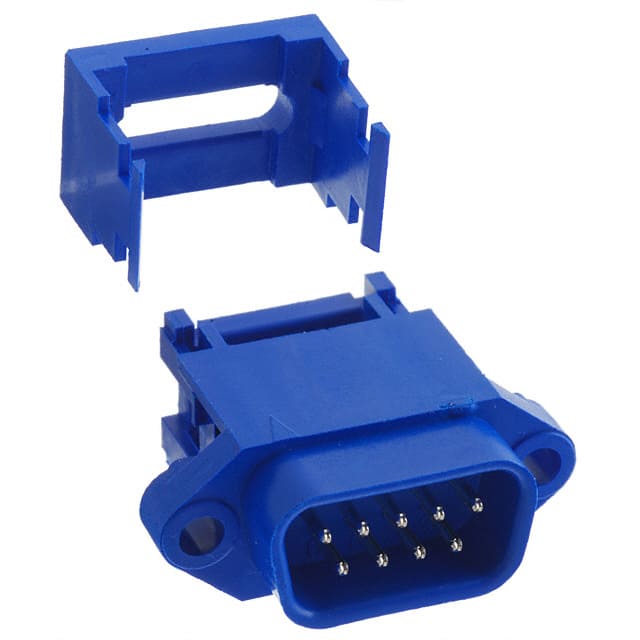

The CW Industries CWR-180-09-0003 is a 9-position D-Sub receptacle connector with male pins arranged in a 2-row layout using shell size DE-E. It utilizes IDC termination for ribbon cable, enabling efficient mass termination. The connector is designed for free hanging (in-line) mounting, making it suitable for cable assemblies.
Contacts are tin-plated with a thickness of 100 microinches (2.54 micrometers) and are rated for signal-level currents up to 1A. The connector features a housing/shell with an unthreaded flange and is rated UL94 V-0 for flammability. Additional features include feed through and strain relief, enhancing mechanical reliability.
This connector is commonly used in applications requiring a compact 9-pin D-Sub interface for data or control signal transmission. The IDC termination simplifies assembly with flat ribbon cables, and the free hanging design allows for flexible cable routing. Compliance with RoHS, REACH, and MSL 1 is indicated but unverified.
9 positions in 2 rows.
1A per contact.
Free hanging (in-line) with IDC termination.
IDC for ribbon cable.
Tin with 100µin thickness.
UL94 V-0.
Feed through and strain relief.
