| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Absolute Pull Range (APR) | |
| Base Resonator | |
| Current | |
| Current - Supply | |
| Frequency | |
| Function | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Package / Case | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Supply | |
| Width |

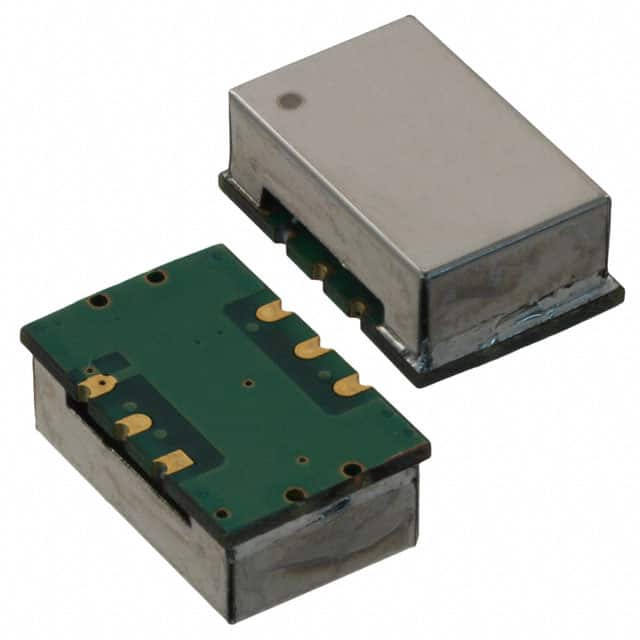

The Crystek CVPD-940-74.1758 is a Voltage Controlled Crystal Oscillator (VCXO) that uses a quartz crystal as its base resonator. It outputs a precise 74.1758 MHz frequency with LVPECL logic levels. The device operates from a 3.3V supply voltage and draws 88mA typical current. The absolute pull range (APR) is ±50ppm, allowing fine frequency adjustment via an external control voltage. An enable/disable function provides output control for power management. The oscillator is housed in a 6-SMD, no-lead surface mount package measuring 14.20mm x 9.14mm with a height of 5.30mm. Its operating temperature range is 0°C to 70°C, suitable for commercial applications. The component is RoHS3 compliant and has a moisture sensitivity level (MSL) of 1, indicating unlimited floor life before soldering.
| Qty | Low | High |
|---|---|---|
| 100+ | $17.49 | $17.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.3V.
6-SMD, No Lead surface mount package.
0°C to 70°C.
Yes, RoHS3 Compliant.
74.1758 MHz.
LVPECL.
±50 ppm.
