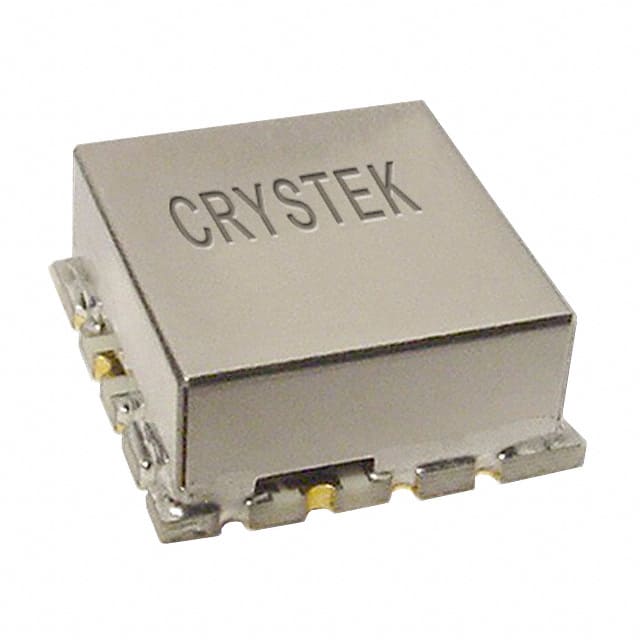

The Crystek CVCO55CC-0775-0800 is a voltage controlled oscillator (VCO) designed for the 775 to 800 MHz frequency range. It operates from a nominal 5.0 V supply (4.75 V to 5.25 V) and draws a typical supply current of 30 mA. The tuning voltage range is 0.3 V to 4.7 V, with a tuning sensitivity of 6 MHz/V.
Output power is typically -5.0 dBm with a minimum of -7.0 dBm and maximum of -3.0 dBm. Harmonic suppression for the 2nd harmonic is typically -15 dBc. Phase noise is -123 dBc/Hz typical at 10 kHz offset and -143 dBc/Hz at 100 kHz offset. The VCO exhibits pushing of 0.2 MHz/V and pulling of 0.1 MHz pk-pk.
The device is housed in a 16-QFN surface mount package measuring 12.70 mm x 12.70 mm x 5.59 mm. It is supplied in tape and reel packaging. Operating temperature range is -30°C to +70°C, with storage from -45°C to +90°C. Load impedance is 50 Ohms, and input capacitance is 47 pF.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.56 | $13.56 |
| 5+ | $33.50 | $33.50 |
| 10+ | $30.31 | $30.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Supply voltage is 5.0 V nominal, with a range of 4.75 V to 5.25 V.
16-QFN surface mount package.
-30°C to +70°C.
RoHS3 Compliant (unverified).
775 to 800 MHz.
0.3 V to 4.7 V.
-123 dBc/Hz at 10 kHz offset and -143 dBc/Hz at 100 kHz offset.
