| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | 912 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 2nd Harmonic, Typ (dBc) | |
| Center Frequency | |
| Frequency | |
| Frequency Range | |
| Harmonic Suppression (2nd) | |
| Height | |
| Icc Max | |
| Lead Style | |
| Length | |
| Load Impedance | |
| Mounting Type | |
| Operating Temperature | |
| Output Power | |
| Phase Noise Typ (dBc | |
| Power (dBm) | |
| Pushing | |
| Pushing (MHz | |
| Storage Temperature | |
| Supply Current | |
| Supply Voltage | |
| Tape & Reel | |
| Termination Style | |
| Tuning Sensitivity | |
| Tuning Voltage | |
| Tuning Voltage (VDC) | |
| Voltage | |
| Width | |
| phase_noise (Typical @ 10 kHz offset) | |
| phase_noise (Typical @ 100 kHz offset) |

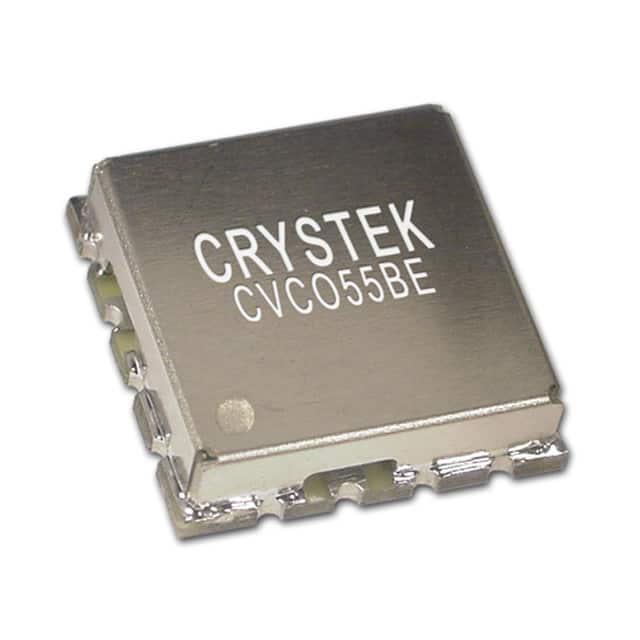

The CVCO55BE-1350-1400 is a voltage controlled oscillator (VCO) from Crystek Corporation. It operates over a frequency range of 1350 to 1400 MHz with a center frequency of 1375 MHz. The tuning voltage range is 0.5 V to 4.5 V, and it requires a 5 V supply voltage.
Electrical characteristics include a typical output power of 7 dBm with a maximum supply current of 35 mA. Harmonic suppression for the 2nd harmonic is -15 dBc typical. Phase noise is -126 dBc/Hz at both 10 kHz and 100 kHz offsets. Pushing is 3 MHz/V maximum, and tuning sensitivity is 3 MHz/V typical. The load impedance is 50 Ω.
The VCO is housed in a 16-QFN surface mount package measuring 12.70 mm x 12.70 mm x 3.81 mm. Operating temperature range is -40°C to 85°C, storage temperature -45°C to 90°C. It is RoHS3 compliant (unverified) and has MSL 1 rating.
| Qty | Low | High |
|---|---|---|
| 5+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 V.
16-QFN surface mount package.
-40°C to 85°C.
Yes, RoHS3 compliant (unverified).
1350 to 1400 MHz.
-126 dBc/Hz at 10 kHz and 100 kHz offsets.
7 dBm typical, ±5 dBm.
