| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Insulation Class | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

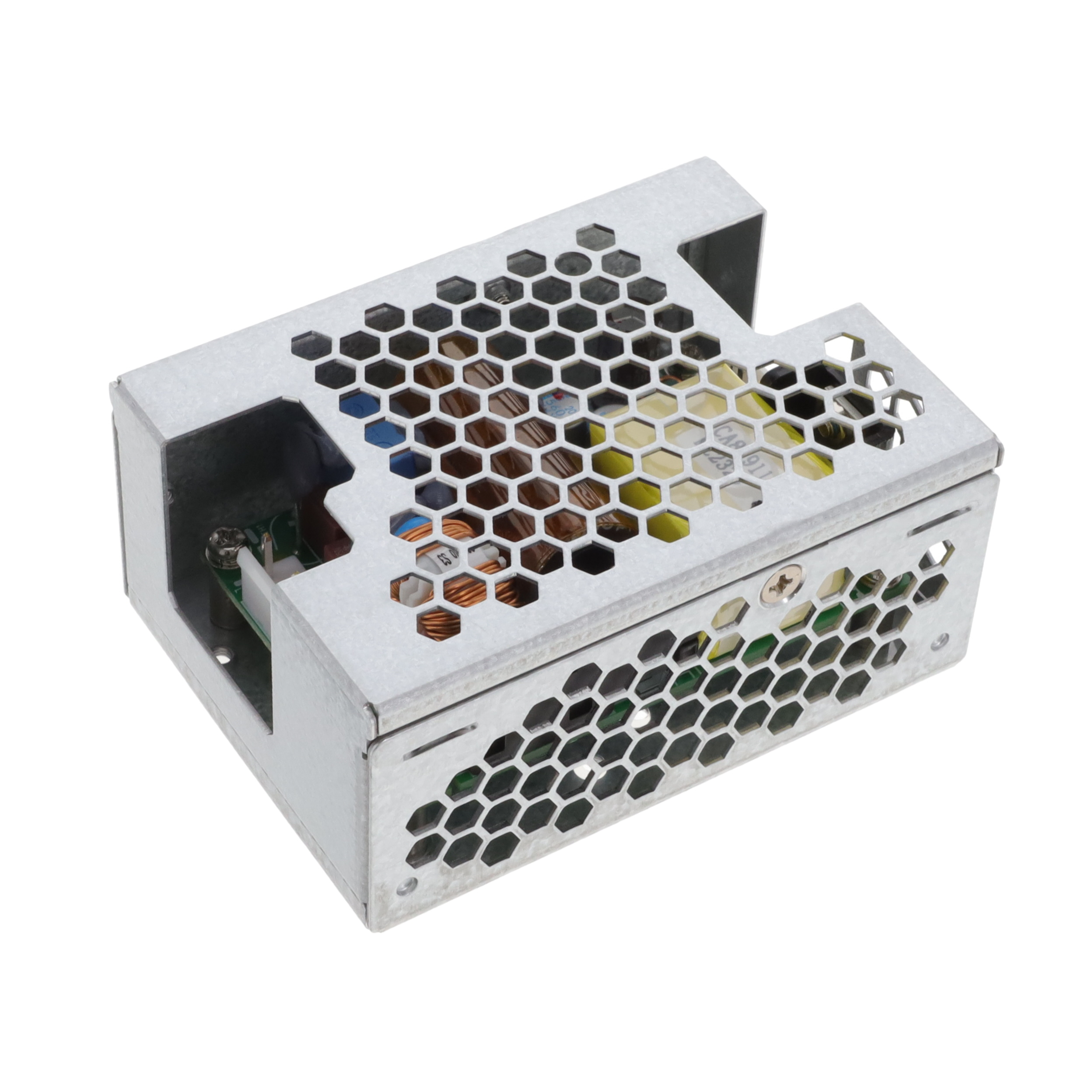

The TDK Corporation CUS60M-5/A is a versatile AC/DC power supply designed for various applications, including household appliances, ITE (Commercial), and Medical equipment. This enclosed converter offers a single 5V output with a maximum load current of 6A and a maximum power of 30W.
Key electrical specifications include a universal input voltage range of 85-264 VAC and an input frequency of 47-63 Hz. It boasts an efficiency of 81% and features adjustable output and universal input capabilities. The unit provides 4 kV of voltage isolation.
Designed for practical integration, the CUS60M-5/A features a chassis mount type and has dimensions of 88.4mm x 64.0mm x 40.5mm. It operates within a temperature range of -20°C to 70°C with derating. Compliance includes CE approval and adherence to standards like EN55011-B, EN55032-B, and FCC Class B for conducted and radiated EMI.
The output voltage is 5V.
The maximum load current is 6A.
The maximum power output is 30W.
The operating temperature range is -20°C to 70°C with derating.
Applications include Household Appliances, ITE (Commercial), and Medical.
