| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

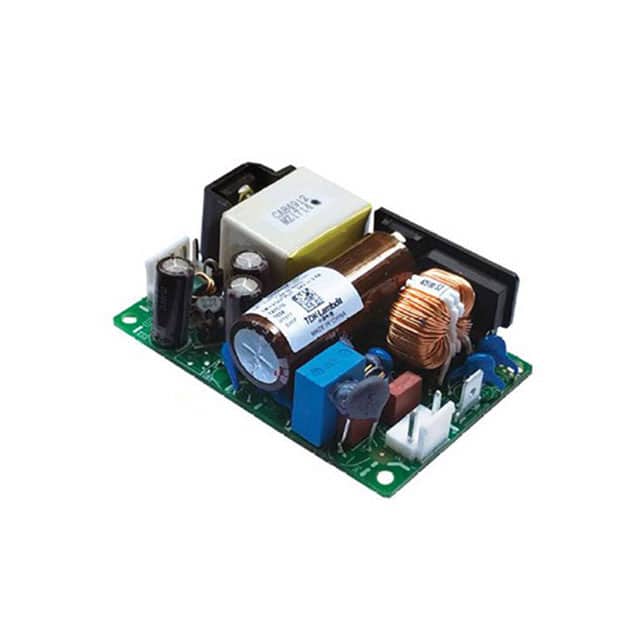

This TDK Corporation CUS60M-15 is an AC/DC converter with an open frame design, suitable for chassis mounting. It provides a 15V output voltage and a 4A output current, delivering a total power of 60W. The converter features an efficiency of 89% and includes features like PFC and Remote Sense. Its operating temperature range is -20°C to 70°C with derating. The unit has an insulation voltage rating of 4kV and is approved by CE.
Applications for this converter include ITE (Commercial) and Medical sectors. Its dimensions are 76.2mm in length, 50.8mm in width, and 26.7mm in height. The RoHS status is RoHS3 Compliant, Moisture Sensitivity Level is 1 Unlimited, and REACH status is REACH Unaffected.
This part is identified by the DK Part Number 285-CUS60M-15-ND.
The output voltage is 15V.
The maximum output current is 4A.
The power rating is 60W.
The efficiency is 89%.
The operating temperature range is -20°C to 70°C with derating.
The dimensions are 76.2mm x 50.8mm x 26.7mm.
It is suitable for ITE (Commercial) and Medical applications.
