| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

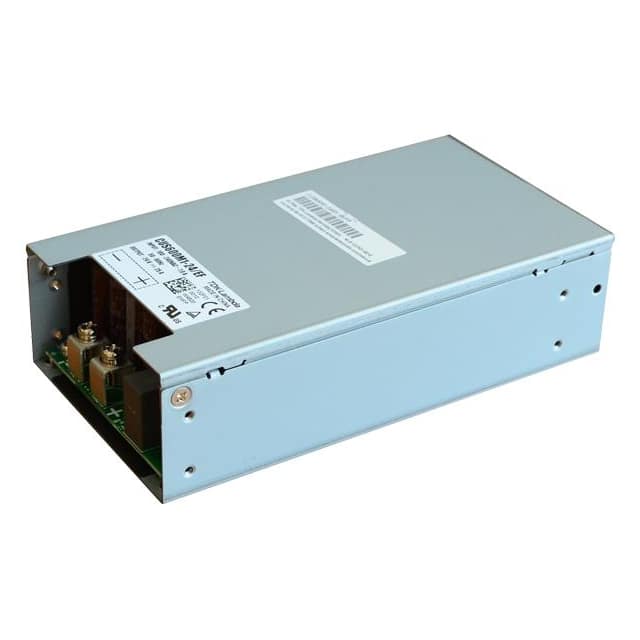

The TDK Corporation CUS600M1-12/EF is an enclosed AC/DC power supply converter designed for ITE (Commercial) and Medical applications. It provides a 12V output voltage with a continuous power rating of 401W, expandable to 600W with forced air cooling.
Key electrical specifications include an output current of 33.4A and high efficiency of 96%. The unit features universal input and an isolation voltage of 4kV. It operates within a temperature range of -20°C to 70°C with derating.
Mechanically, the converter is designed for chassis mounting and has dimensions of 157.0mm x 85.1mm x 42.4mm. It complies with safety standards including 60601-1, 60950-1, and 62368-1, and holds approvals from CE, cURus, and TUV.
Environmental compliance includes RoHS3 compliance and MSL 1 rating. The REACH status is unaffected.
The TDK Corporation CUS600M1-12/EF provides 401W of continuous output power, with an option for 600W using forced air.
The CUS600M1-12/EF has an output voltage of 12V.
The efficiency of the CUS600M1-12/EF is 96%.
The operating temperature range for the CUS600M1-12/EF is -20°C to 70°C, with derating applied.
The CUS600M1-12/EF uses a chassis mount.
Yes, the CUS600M1-12/EF is RoHS3 compliant.
The Moisture Sensitivity Level (MSL) for the CUS600M1-12/EF is 1 Unlimited.
