| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

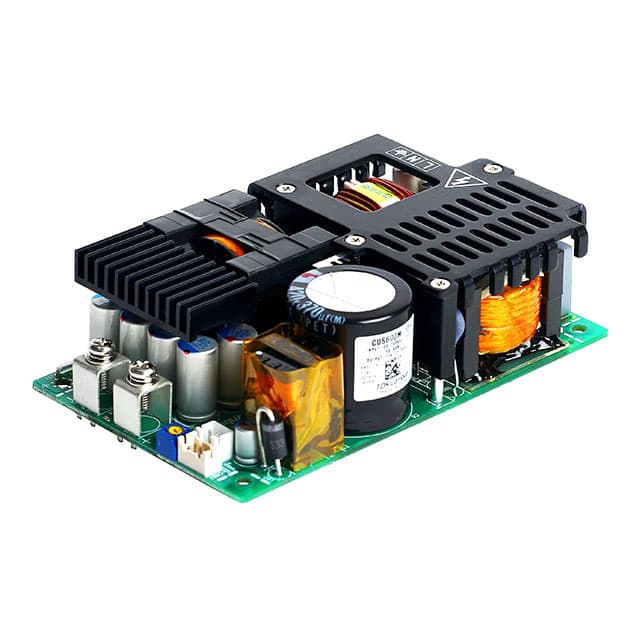

The TDK Corporation CUS600M-36 is an AC DC Converter designed for ITE (Commercial) and Medical applications. This open frame unit offers a power output of 400W, with a higher 600W capability under forced air conditions, and provides a 36V output.
Key electrical specifications include a current rating of 11.1A and an efficiency of 96%. It operates within a temperature range of -20°C to 70°C with derating. The converter supports features such as Remote On/Off, Remote Sense, Standby Output, and Universal Input, making it versatile for various system designs.
Mechanically, the CUS600M-36 is designed for chassis mounting and has dimensions of 127.0mm x 76.2mm x 34.0mm. It meets safety standards including 60601-1, 60950-1, and 62368-1, and carries CE approval.
This model is RoHS3 Compliant, has an MSL rating of 1 Unlimited, and is REACH Unaffected.
36V
-20°C to 70°C with derating
Chassis Mount
127.0mm x 76.2mm x 34.0mm (5.00" x 3.00" x 1.34")
96%
400W (600W forced air)
1
