| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Depth | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Weight | |
| Width |

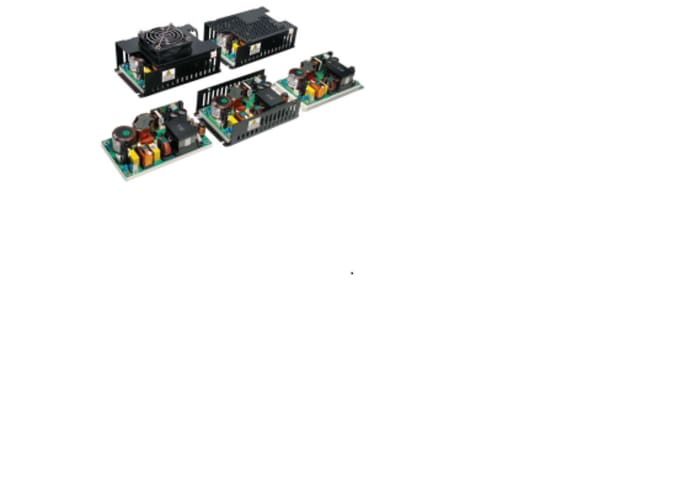

The TDK-Lambda CUS400M-36/FX5 is a compact, enclosed switching power supply designed for ITE (Commercial) and Medical applications. It delivers a 36V dc output at 6.94A, providing up to 400W of power with forced air cooling, or 250W when convection or conduction cooled. The unit accepts a wide input voltage range of 85V ac to 264V ac and boasts an efficiency of up to 90%.
Key features include adjustable output, remote on/off, remote sense, and a standby output. The CUS400M series meets stringent standards including CE, IEC/UL/CSA/EN 62368-1, and FCC-B, ensuring reliability and safety in various environments. It is suitable for Class I and Class II installations and meets Class B conducted and radiated EMI standards.
With dimensions of 142.0mm x 90.0mm x 42.5mm, this power supply is designed for chassis or panel mounting. Its operating temperature range is -20°C to 70°C with derating. The CUS400M-36/FX5 is RoHS3 compliant and has an MSL of 1.
The output voltage is 36V dc.
The maximum output current is 6.94A.
The power rating is 400W with forced air cooling, and 250W when convection or conduction cooled.
The input voltage range is 85V ac to 264V ac.
The operating temperature range is -20°C to 70°C with derating.
The dimensions are 142.0mm x 90.0mm x 42.5mm.
Yes, it is RoHS3 compliant.
