| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

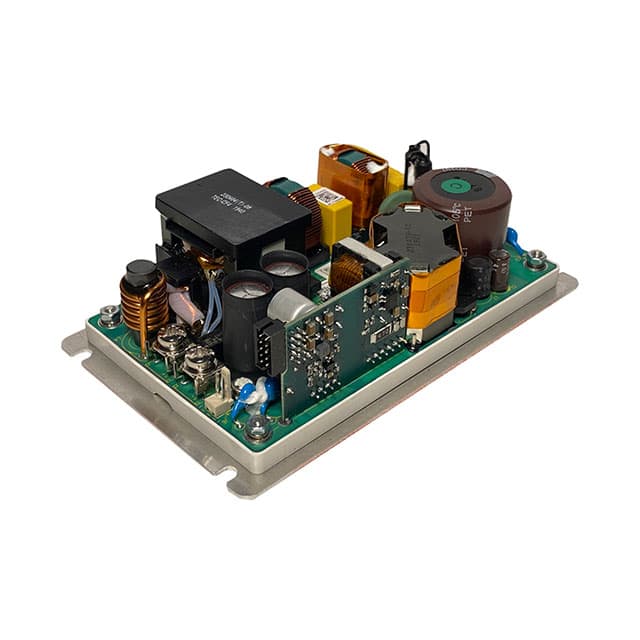

The TDK Corporation CUS400M-12/U is an AC/DC converter designed for ITE (Commercial) and Medical applications. This open-frame unit features a chassis mount for easy integration into systems.
Key electrical specifications include a 250W power rating, which can be boosted to 400W with forced air cooling. It provides a 12V output and can deliver up to 20.83A. The converter offers a wide operating temperature range from -20°C to 70°C, with derating applied at higher temperatures. It also features adjustable output, remote sense, standby output, and universal input capabilities.
With an isolation voltage of 4 kV and compliance with standards such as 60601-1, 60950-1, and 62368-1, this converter is suitable for demanding applications. The dimensions are 142.0mm x 90.0mm x 41.0mm (5.59" x 3.54" x 1.61").
Environmental compliance includes RoHS3 compliance and an MSL 1 rating. The REACH status is unaffected.
12V DC.
20.83 A.
250W convection, 400W with forced air.
142.0mm x 90.0mm x 41.0mm (5.59" x 3.54" x 1.61").
-20°C to 70°C with derating.
4 kV.
CE certified, compliant with IEC 60601-1, 60950-1, and 62368-1.
