| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Insulation Class | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

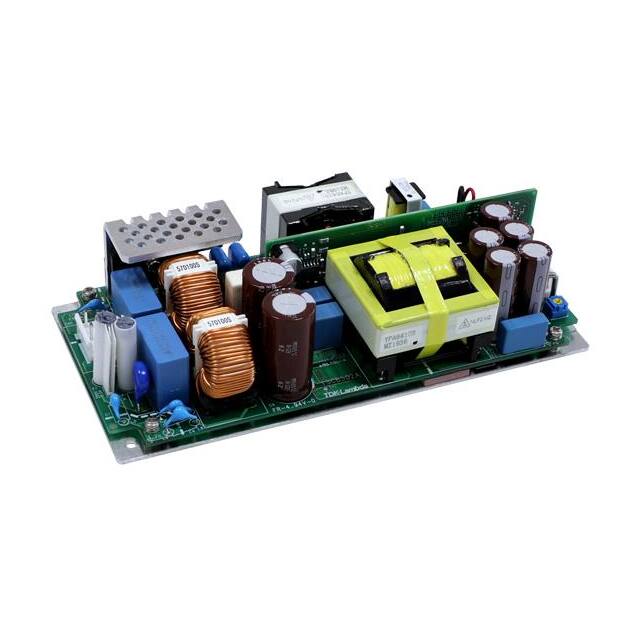

The TDK Corporation CUS350MP-1000-48 is an AC-DC power supply designed for various applications, including ITE (Commercial) and Medical. It provides a 48V output at 7.3A, delivering up to 350W of power, with a peak capability of 1000W for 1 second or 800W for 5 seconds.
This open frame power supply is designed for chassis mounting and measures 183.0mm x 88.0mm x 44.0mm. It operates within an input voltage range of 85-265Vac and features a wide operating temperature range of -20°C to 70°C with derating.
The CUS350MP-1000-48 meets several safety and compliance standards, including IEC60601-1, IEC62368-1, and EN62477-1 (OVCIII), with CE and UKCA marks. It also complies with EN55011 / EN55032-B, FCC Class B, and VCCI-B for conducted and radiated EMI.
Key features include adjustable output, PFC, remote on/off, and a standby output. The power supply offers efficiencies up to 94% and has a five-year warranty.
The output voltage is 48V.
The maximum output current is 7.3A.
The power rating is 350W, with a forced air rating of 499W.
The operating temperature range is -20°C to 70°C with derating.
The dimensions are 183.0mm in length, 88.0mm in width, and 44.0mm in height.
It complies with IEC/ES/EN60601-1, IEC/UL/EN62368-1, and EN62477-1 (OVCIII), and carries CE and UKCA marks.
It has a peak power capability of up to 1000W for 1 second or 800W for 5 seconds.
