| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Country of Origin | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Weight | |
| Width |

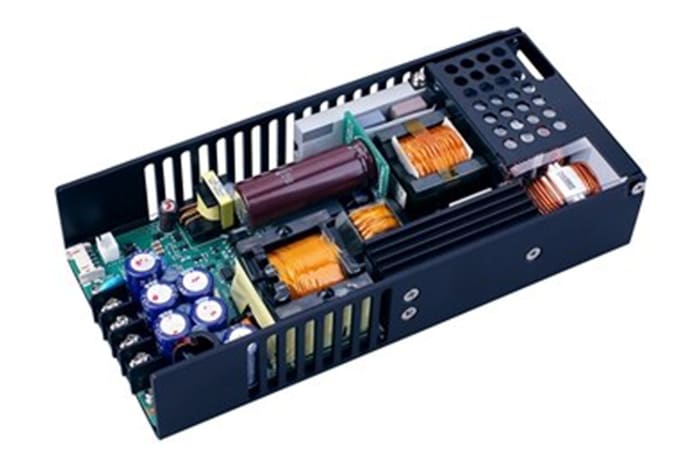

The TDK-Lambda CUS350M-36/F is a single-output AC DC switching power supply designed for medical and ITE applications. It provides a 36V dc output voltage and can deliver up to 414W of power. The input voltage range is 85V ac to 265V ac, with an efficiency of up to 94%.
This power supply operates within a temperature range of -20°C to 70°C. It is suitable for applications where audible noise is a concern, such as hospital, dental, broadcast, and professional audio equipment. The unit is chassis mountable and has dimensions of 190.0mm x 87.0mm x 40.0mm.
Key features include a 5V 0.5A standby output, Power Good signal, 12V 0.3A fan supply, and remote on/off functionality. It meets various safety standards including IEC/EN60601-1, 60950-1, and IEC/UL/CSA/EN62368-1, and carries CE and UKCA marks.
The output voltage is 36V dc.
The power rating is 414W.
The input voltage range is 85V ac to 265V ac.
The operating temperature range is -20°C to 70°C.
The efficiency is 94%.
The output current is 11.5A.
The dimensions are 190.0mm x 87.0mm x 40.0mm.
