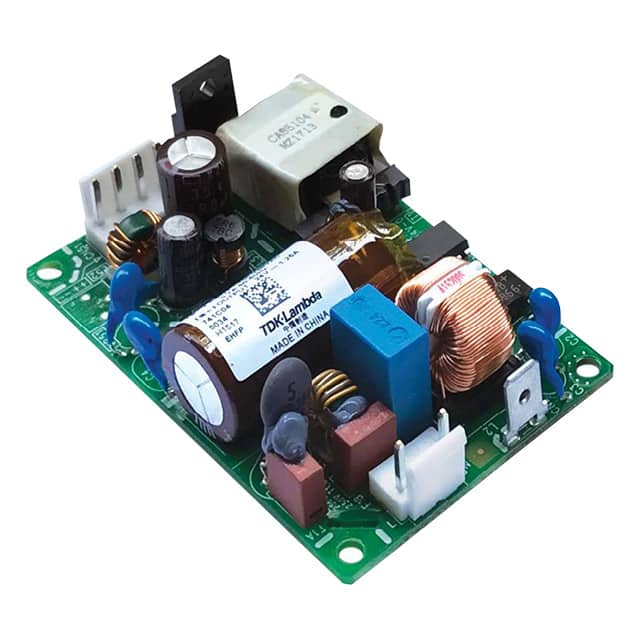

CUS30M-12/CO The TDK Corporation CUS30M-12/CO is a 30W AC/DC converter with a 12V output. It features an open frame design with conformal coating and chassis mounting.
Mfr Part #:

CUS30M-12/CO

Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation CUS30M-12/CO is a 30W AC/DC converter with a 12V output. It features an open frame design with conformal coating and chassis mounting.
Stock on Request

CUS30M-12/CO Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
SVHC Present
Type
Voltage
Width
View Similar Products (0)

CUS30M-12/CO Description

Short technical summary and product information.

This TDK Corporation CUS30M-12/CO is an AC/DC converter with a power rating of 30W and an output voltage of 12V. It is designed as an open frame unit with conformal coating for added protection.



The converter features adjustable output and universal input capabilities, making it versatile for various applications. It has a chassis mount type for easy integration into systems. Key electrical specifications include an output current of 2.5A and an efficiency of 88%. The isolation voltage is rated at 4kV.



Operating within a temperature range of -20°C to 70°C (with derating), this converter is suitable for applications such as household appliances, ITE (Commercial), and medical equipment. It holds CE approval.



Dimensions are 76.2mm in length, 50.8mm in width, and 21.7mm in height.

CUS30M-12/CO Quick Information

Product Type: AC DC Converter
Series: CUS30M
Canonical Name: TDK Corporation CUS30M-12/CO AC/DC Converter
Subcategory: AC DC Converters

CUS30M-12/CO Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CUS30M-12/CO Features

  • 30W AC/DC converter with 12V output.
  • Open frame, conformal coated design.
  • Chassis mount for easy integration.
  • Adjustable output and universal input.
  • Operates from -20°C to 70°C.

CUS30M-12/CO Applications

  • Suitable for household appliances.
  • Ideal for ITE (commercial) equipment.
  • Used in medical devices.
  • Chassis mount power supply for embedded systems.

CUS30M-12/CO FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage and current?

The output is 12V at 2.5A.

What is the power rating?

30W.

What is the efficiency?

88%.

What is the isolation voltage?

4 kV.

What is the operating temperature range?

-20°C to 70°C with derating.

What mounting type does it use?

Chassis Mount.

What applications is it approved for?

Household Appliances, ITE (Commercial), and Medical.
