| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

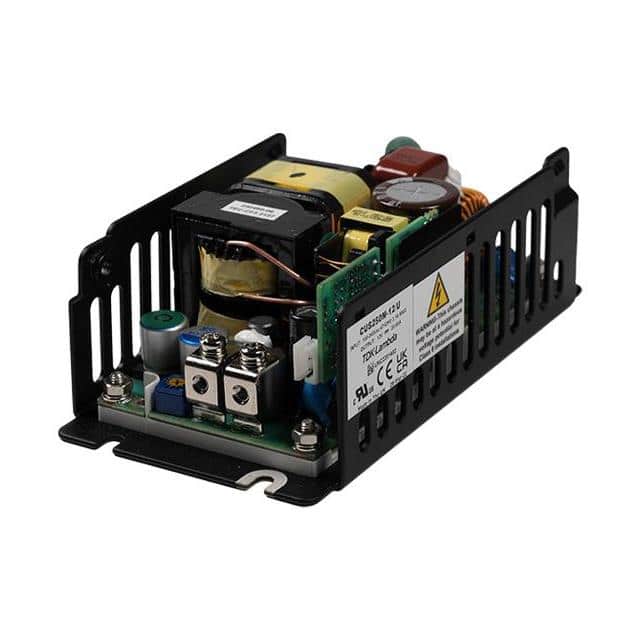

The TDK Corporation CUS250M-24/U is a versatile 250W AC-DC power supply designed for ITE, commercial, laboratory, and medical applications. It features a compact 2x4 inch footprint and provides a 24V output voltage with a maximum current of 10.41A.
This power supply operates with a universal input voltage range of 80-264 VAC and boasts high efficiency up to 94%. Key features include adjustable output, power factor correction (PFC), a standby output, and compliance with safety standards such as 61010-1, 60601-1, 60950-1, and 62368-1. It is certified by CE and UKCA.
The CUS250M-24/U is designed for chassis mounting and is available in an open frame configuration. It operates within an ambient temperature range of -20°C to 85°C with derating. The unit meets Class B conducted and radiated EMI standards and is suitable for Class I and Class II installations.
With its robust feature set and certifications, the CUS250M-24/U is an ideal choice for applications requiring reliable and efficient power conversion in demanding environments.
The nominal output voltage is 24V.
The maximum power output is 250W.
The operating input voltage range is 80 to 264 VAC.
It operates in ambient temperatures from -20°C to 85°C with derating.
It is designed for chassis mounting.
Key features include adjustable output, PFC, standby output, and universal input.
It complies with 61010-1, 60601-1, 60950-1, and 62368-1 standards.
