| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

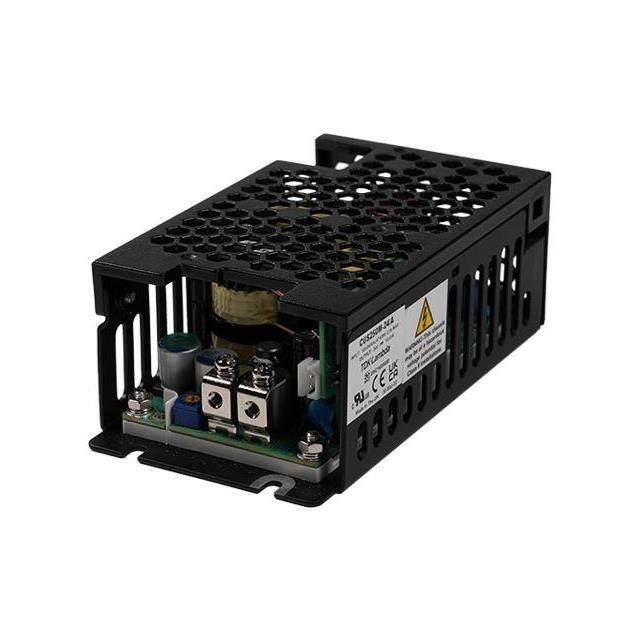

The TDK Corporation CUS250M-24/AJ is an enclosed AC-DC power supply designed for ITE, laboratory, and medical applications. It delivers 250W of power with a nominal 24V output voltage and a maximum output current of 10.41A. The converter features a high efficiency of 94% and operates from a wide input voltage range of 80-264 VAC.
This series is packaged in a compact 2x4 inch footprint, measuring 119.2mm x 64.0mm x 39.5mm. It supports chassis mounting and is suitable for high ambient temperature environments, operating up to 85°C with derating. The CUS250M series meets Class B conducted and radiated EMI standards and holds certifications for Class I and Class II installations, including medical certifications (2 x MOPP).
Additional features include adjustable output voltage, power factor correction (PFC), remote on/off control, and a 5V standby output. It is compliant with safety standards such as 61010-1, 60601-1, 60950-1, and 62368-1, and carries CE and UKCA approvals.
The nominal output voltage is 24V.
The maximum power output is 250W.
The operating input voltage range is 80-264 VAC.
It operates from -20°C to 85°C with derating.
The dimensions are 119.2mm x 64.0mm x 39.5mm.
It complies with 61010-1, 60601-1, 60950-1, and 62368-1.
Yes, it has medical certifications including 2 x MOPP and is suitable for B and BF type medical equipment.
