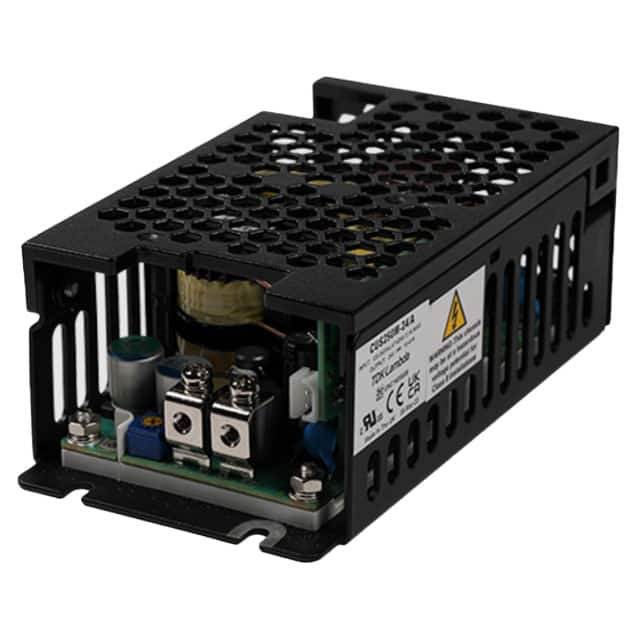

The TDK Corporation CUS250M-12/AJ is a 250W enclosed AC/DC power supply designed for versatile applications including ITE (Commercial), Laboratory, and Medical environments. It features a nominal 12V DC output and can deliver up to 20.83A.
This power supply operates with a wide input voltage range of 80-264V ac and boasts a high efficiency of 94%. It supports adjustable output, power factor correction (PFC), remote on/off functionality, and a standby output. The unit is certified to standards including 61010-1, 60601-1, 60950-1, and 62368-1, and carries CE and UKCA approvals.
With a compact footprint, the CUS250M-12/AJ is suitable for chassis mounting. It operates within an ambient temperature range of -20°C to 85°C with derating. The power supply meets Class B conducted and radiated EMI standards and offers 2 x MOPP medical certifications, making it suitable for B and BF type medical equipment.
80-264Vac (operating), 100-240Vac nominal.
12V nominal, adjustable up to 13.2V.
20.83A maximum.
94% typical.
-20°C to 85°C with derating.
CE, UKCA; safety standards 61010-1, 60601-1, 60950-1, 62368-1; Class B EMI; 2xMOPP medical; EN60335-1 compliant.
Enclosed chassis mount.
