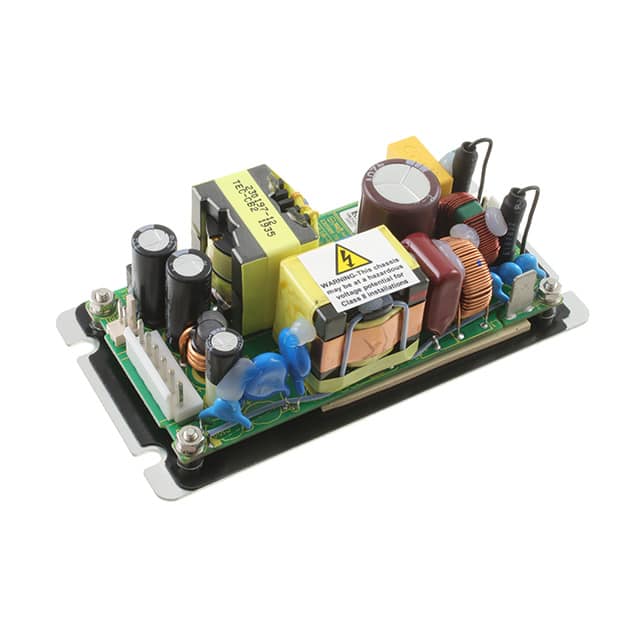

The TDK Corporation CUS150M-48/B is an AC/DC converter designed for commercial and medical applications. It operates with an input voltage range of 85 to 264 VAC and delivers a stable 48V output at 120W, with a higher 150W rating under forced air cooling.
Key electrical specifications include an output current of 2.5A and an impressive efficiency of 94%. The converter provides 4 kV of isolation voltage. It features universal input, a standby output, and a baseplate for mounting.
Mechanically, this open frame converter has dimensions of 101.6mm x 50.8mm x 31.5mm and is designed for chassis mounting. The operating temperature range is -20°C to 85°C, with derating applied at higher temperatures. The RoHS status is RoHS3 Compliant.
The output voltage is 48V.
The input voltage range is 85 ~ 264 VAC.
The output current is 2.5 A.
The power rating is 120W, with a 150W rating for forced air.
The efficiency is 94%.
The operating temperature range is -20°C to 85°C, with derating.
It uses chassis mount.
