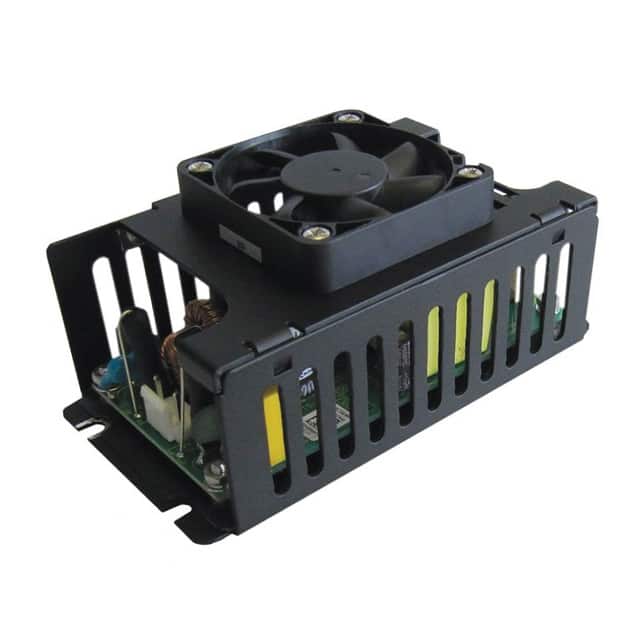

CUS150M-28/F The TDK-Lambda CUS150M-28/F is a 150W AC/DC converter with a 28V dc output. It operates from an 85-264V ac input and features 94% efficiency.
Mfr Part #:

CUS150M-28/F

Mfr Name: TDK Corporation
TDK Corporation
The TDK-Lambda CUS150M-28/F is a 150W AC/DC converter with a 28V dc output. It operates from an 85-264V ac input and features 94% efficiency.
Stock on Request

CUS150M-28/F Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Current
Output Voltage
Power (Watts)
SVHC Present
Type
Voltage
Width

CUS150M-28/F Description

Short technical summary and product information.

The TDK-Lambda CUS150M-28/F is an enclosed, chassis-mount switching power supply designed for general purpose industrial, medical, and test & measurement applications. It delivers a 28V dc output at up to 8.33A, providing a total power of 150W. The unit accepts a wide input voltage range of 85V ac to 264V ac and boasts a high efficiency of 94%.



This power supply operates within a temperature range of -40°C to 70°C, with derating available from -20°C to 85°C. It features a compact 2x4 inch footprint and is suitable for Class I and Class II installations. The CUS150M-28/F meets various safety and EMC standards, including EN 55022-B, FCC-B, and IEC/UL/CSA/EN 62368-1, making it a versatile choice for demanding applications.

CUS150M-28/F Quick Information

Product Type: AC DC Converter
Series: CUS150M
Canonical Name: TDK-Lambda CUS150M-28/F Switching Power Supply

CUS150M-28/F Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CUS150M-28/F Features

  • 150W total power output.
  • 28V dc nominal output voltage.
  • Wide 85-264V ac input range.
  • High 94% efficiency rating.
  • Chassis mountable enclosed design.

CUS150M-28/F Applications

  • Suitable for ITE (Commercial) applications.
  • Designed for Medical equipment use.
  • Ideal for general industrial systems.
  • Used in test and measurement devices.

CUS150M-28/F FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum output voltage for the CUS150M-28/F?

The maximum output voltage is 28V dc.

What is the maximum output current of this power supply?

The maximum output current is 8.33A.

What is the power rating of the CUS150M-28/F?

The power rating is 150W.

What is the input voltage range for this TDK-Lambda power supply?

The input voltage range is 85V ac to 264V ac.

What is the efficiency of the CUS150M-28/F?

The efficiency is 94%.

What is the operating temperature range?

The operating temperature range is -40°C to 70°C.

How is the CUS150M-28/F mounted?

It is a chassis mount type.
