| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

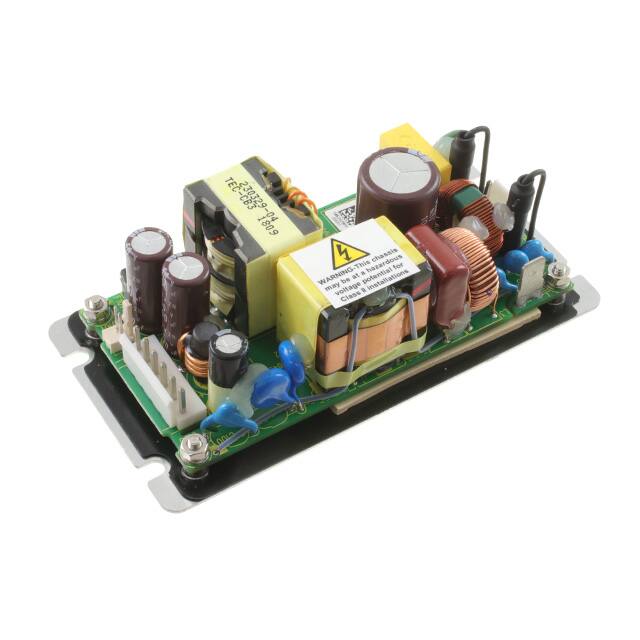

The TDK Corporation CUS150M-28/B is an open frame AC/DC converter delivering a 28V output voltage and up to 120W of power (150W with forced air). This unit is designed for chassis mounting and features a universal input.
Key electrical specifications include a current rating of 4.3A and an efficiency of 94%. The converter operates within a temperature range of -20°C to 85°C with derating. It offers isolation voltage of 4kV and includes features such as a baseplate, standby output, and universal input capability.
Designed for ITE (Commercial) and Medical applications, this converter measures 101.6mm in length, 50.8mm in width, and 31.5mm in height. It has a single output and complies with RoHS3 standards.
The CUS150M-28/B provides a single output of 28V at 4.3A.
It is rated for 120W with convection cooling and 150W with forced air cooling.
The efficiency is 94%.
The operating temperature range is -20°C to 85°C with derating.
The isolation voltage is 4 kV.
It uses chassis mount.
The dimensions are 101.6mm x 50.8mm x 31.5mm.
