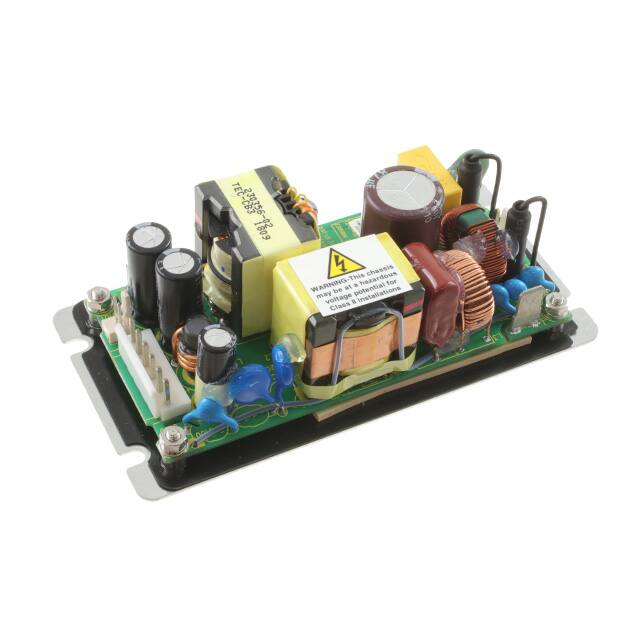

The TDK Corporation CUS150M-18/B is an AC DC Converter designed for ITE (Commercial) and Medical applications. This open-frame unit features a chassis mount and provides a single output.
Key electrical specifications include a power rating of 120W, which can be boosted to 150W with forced air, and an impressive efficiency of 94%. It operates over a temperature range of -20°C to 85°C with derating.
Mechanical dimensions are 101.6mm in length, 50.8mm in width, and 31.5mm in height. The converter also includes features such as a baseplate, standby output, and universal input, along with 4 kV of insulation voltage.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted with low confidence and require verification.
The CUS150M-18/B has a power output of 120W, which can be increased to 150W with forced air.
The operating temperature range is -20°C to 85°C, with derating applied.
This AC DC converter uses a chassis mount.
It is suitable for ITE (Commercial) and Medical applications.
The efficiency of the CUS150M-18/B is 94%.
