| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

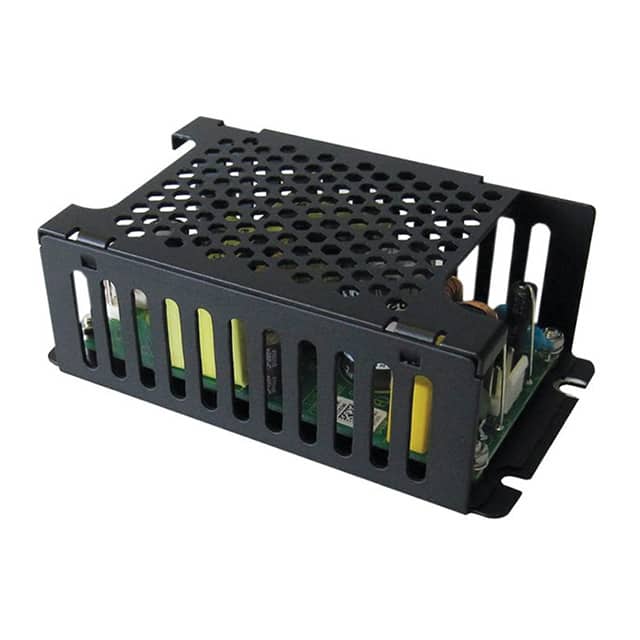

This TDK Corporation CUS150M-15/A is an enclosed AC/DC power converter designed for ITE (Commercial) and Medical applications. It provides a 150W output power with a 10A current rating and operates with an efficiency of 94%. The converter features standby output and universal input capabilities.
With dimensions of 116.0mm x 64.0mm x 39.7mm, it is designed for chassis mounting. The operating temperature range is -20°C to 85°C with derating. The unit also provides 4kV of isolation voltage.
This model is RoHS3 compliant and has an MSL rating of 1.
-20°C to 85°C with derating.
15V DC.
150W (150W forced air).
94%.
4 kV.
Chassis mount.
116mm x 64mm x 39.7mm.
