| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

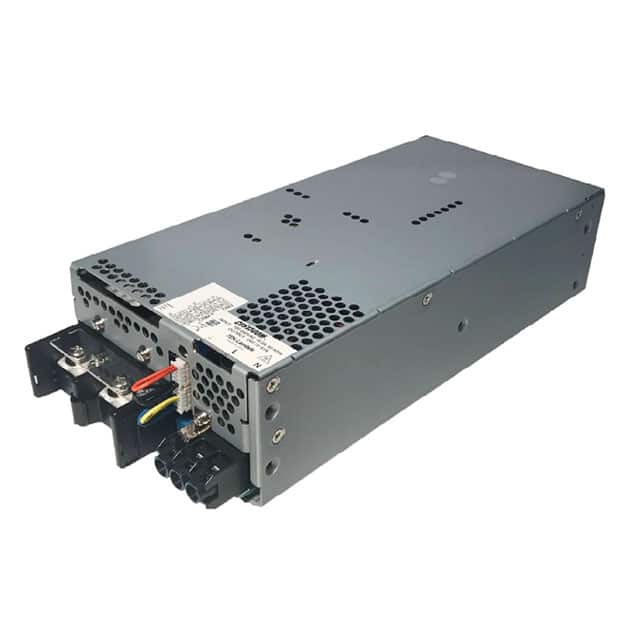

The TDK Corporation CUS1500M-36 is an enclosed AC/DC power converter designed for ITE (Commercial) and Medical applications. It provides a 36V output voltage and a maximum power of 1512W, with a current rating of 42A.
Key electrical specifications include an efficiency of 88% and an isolation voltage of 4 kV. The converter operates within a temperature range of -20°C to 60°C, with derating applied. It features adjustable output, remote on/off, remote sense, and a standby output.
This unit is designed for chassis mounting and has dimensions of 261.0mm in length, 127.0mm in width, and 63.0mm in height. It has a single output and is compliant with RoHS3 standards.
-20°C to 60°C (with derating).
1512W.
42A.
88%.
Chassis mount.
1.
Length 261mm, width 127mm, height 63mm.
