| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

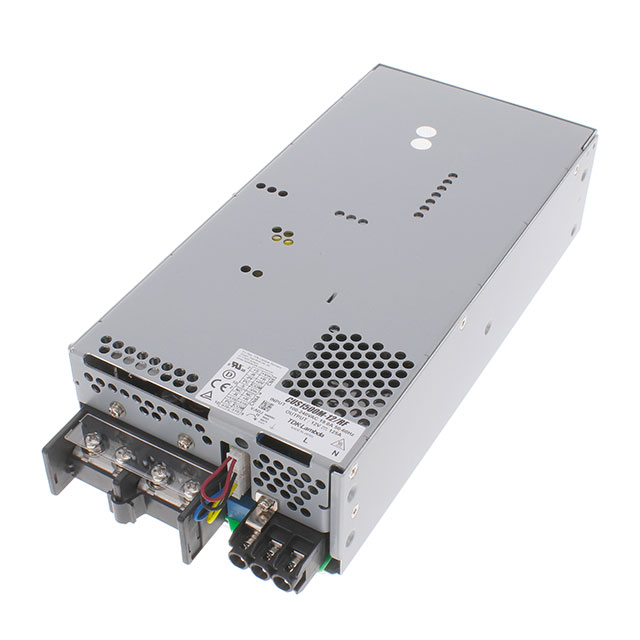

The TDK Corporation CUS1500M-12/RF is an enclosed AC/DC converter designed for industrial and medical applications. It provides a single 12V output with a maximum current of 125A, delivering a total power of 1500W.
This converter operates with a universal input voltage range of 85-265 VAC or 120-340 VDC, offering flexibility in power source selection. It boasts an efficiency of 85% and features such as adjustable output, remote on/off control, remote sense, and a standby output. The isolation voltage is rated at 4 kV.
Designed for chassis mounting, the CUS1500M-12/RF has dimensions of 261.0mm x 127.0mm x 63.0mm. Its operating temperature range is -20°C to 70°C with derating. The unit is suitable for ITE (Commercial) and Medical applications.
Compliance includes CE approval. The RoHS status is compliant, REACH is unaffected, and the Moisture Sensitivity Level (MSL) is 1 (Unlimited).
The output voltage is 12V.
The maximum output current is 125A.
The power rating is 1500W.
The input voltage range is 85-265 VAC or 120-340 VDC.
The operating temperature range is -20°C to 70°C with derating.
The dimensions are 261.0mm L x 127.0mm W x 63.0mm H.
It uses chassis mount.
