| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

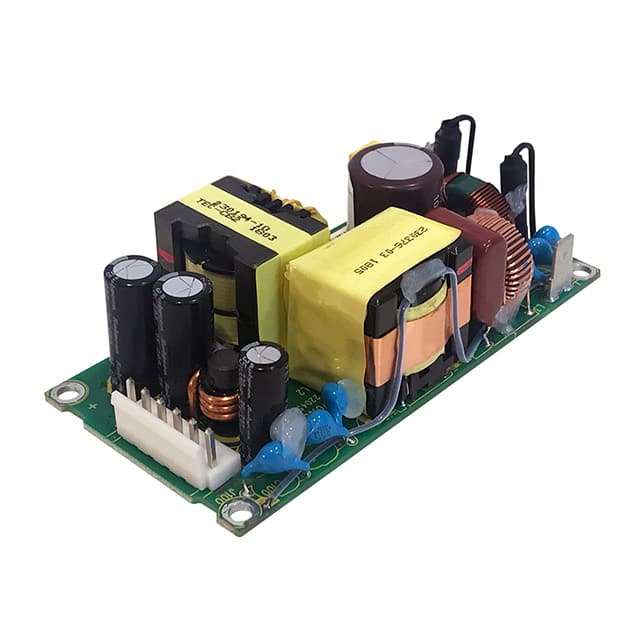

The TDK Corporation CUS100ME-36 is an open-frame AC/DC converter designed for chassis mounting. It delivers 100W of power with a stable 36V output voltage and a high efficiency of 94%.
This converter is suitable for applications requiring a universal input voltage and features isolation up to 4kV. Its operating temperature range is -20°C to 85°C with derating. The dimensions are 101.6mm in length, 50.8mm in width, and 31.5mm in height.
Key features include universal input capability and suitability for household appliances, ITE (Commercial), and medical applications. It provides a single output with a current rating of 2.77A.
36V
100W
94%
4kV
Chassis Mount
-20°C to 85°C with derating
Household appliances, ITE (commercial), and medical
