| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

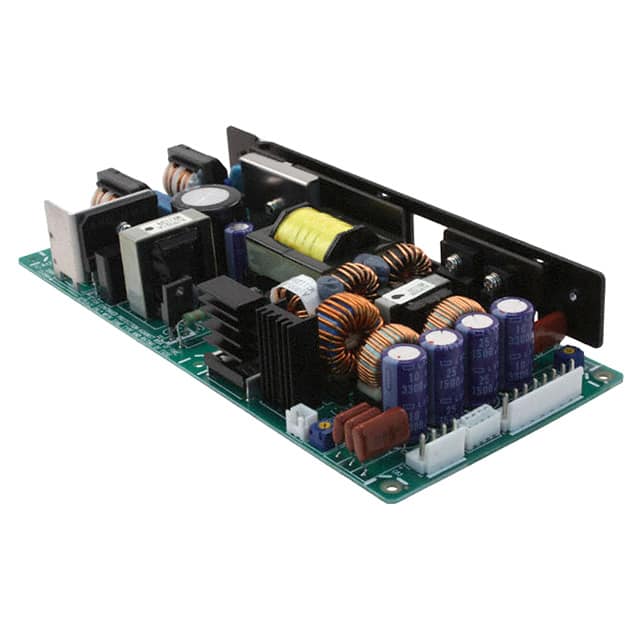

The TDK Corporation CUS100ME-15/B is an open frame AC/DC converter designed for versatile applications. It delivers 100W of power with a single 15V output and operates with an input voltage range of 85 to 264 VAC.
Key technical specifications include a high efficiency of 94% and an operating temperature range of -20°C to 85°C with derating. The converter is designed for chassis mounting and features a baseplate for enhanced thermal management. Its dimensions are 116.0mm x 59.4mm x 34.2mm.
This AC/DC converter is suitable for various applications, including household appliances, ITE (Commercial), and medical equipment. It provides 4kV of isolation and supports universal input, making it a flexible solution for power conversion needs.
85 to 264 VAC.
-20°C to 85°C with derating.
Open frame, chassis mount.
94%.
Single output.
15V at 6.66A.
4 kV.
