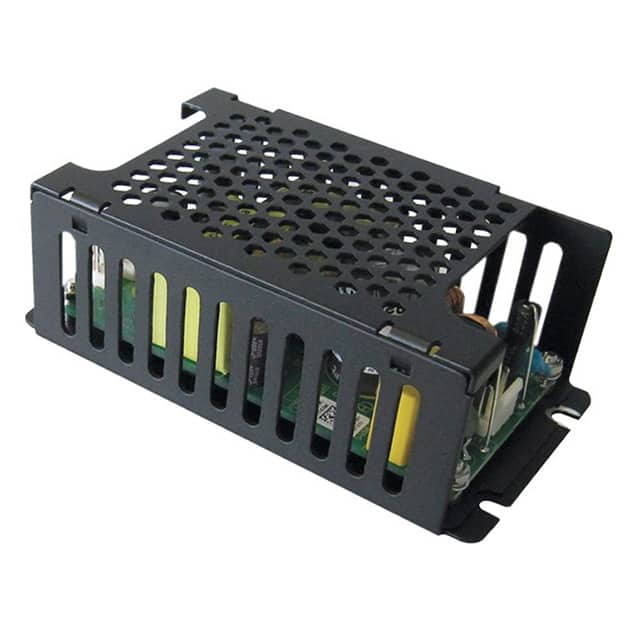

The TDK Corporation CUS100ME-15/A is an enclosed AC/DC converter designed for various applications including household appliances, ITE (Commercial), and Medical. It operates with a universal input voltage range of 85 to 264 VAC and provides a stable 15V output at 6.66A, delivering a total of 100W of power.
Key specifications include a high efficiency of 94% and an isolation voltage of 4 kV. The operating temperature range is -20°C to 85°C with derating. This converter is designed for chassis mounting, making it suitable for integration into various systems.
Its dimensions are 116.0mm x 64.0mm x 38.5mm. The CUS100ME series is known for its reliable performance in demanding environments. The unit is RoHS3 compliant and REACH unaffected.
The input voltage range is 85 to 264 VAC.
The package is enclosed and chassis mount.
The operating temperature range is -20°C to 85°C with derating.
The output voltage is 15V.
The output current is 6.66A.
The power rating is 100W.
The efficiency is 94%.
