| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Operating Force | |
| Operating Temperature | |
| Operating Voltage | |
| Storage Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

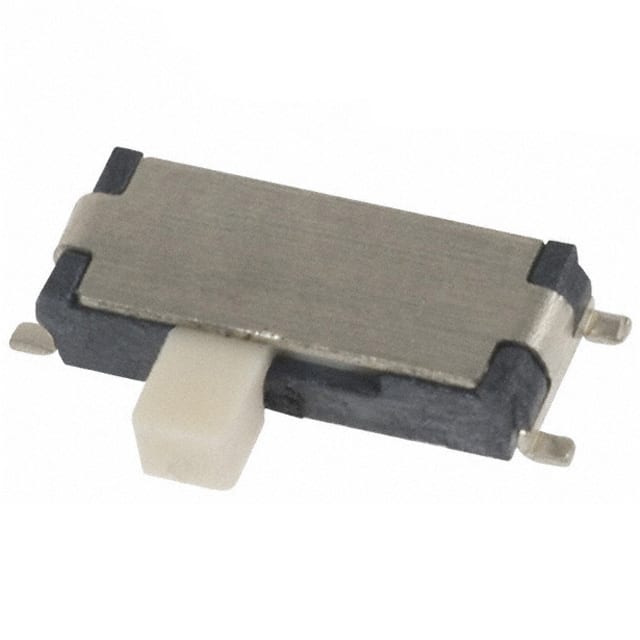

The Nidec CUS-12TB is a low-profile slide switch with a height of 1.4 mm. It features SPDT circuitry and is designed for surface mount applications with a right-angle orientation and gull wing termination style. This switch is rated for 300mA at 4V and has a contact finish of gold over copper alloy.
Key specifications include an operating temperature range of -20°C to 70°C and a stroke of 1.5 mm. The switch is RoHS compliant and suitable for applications such as mobile stereo, LCD TVs, and camcorders. The resin material is UL Recognized 94V-0.
Mechanical characteristics include a stop strength of 10 N and various soldering specifications for both reflow and manual soldering processes. Environmental testing includes vibration, shock, and load life tests, ensuring reliability in demanding conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -20°C to 70°C.
The switch is rated for 300mA (DC) switching current.
It supports surface mount, right angle mounting.
The contact finish is gold.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
