| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,400 pcs
|
16400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Current | |
| Forward Voltage | |
| Height | |
| Junction Temperature | |
| Length | |
| Number of Pins | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Thermal Resistance | |
| Viewing Angle | |
| Width |

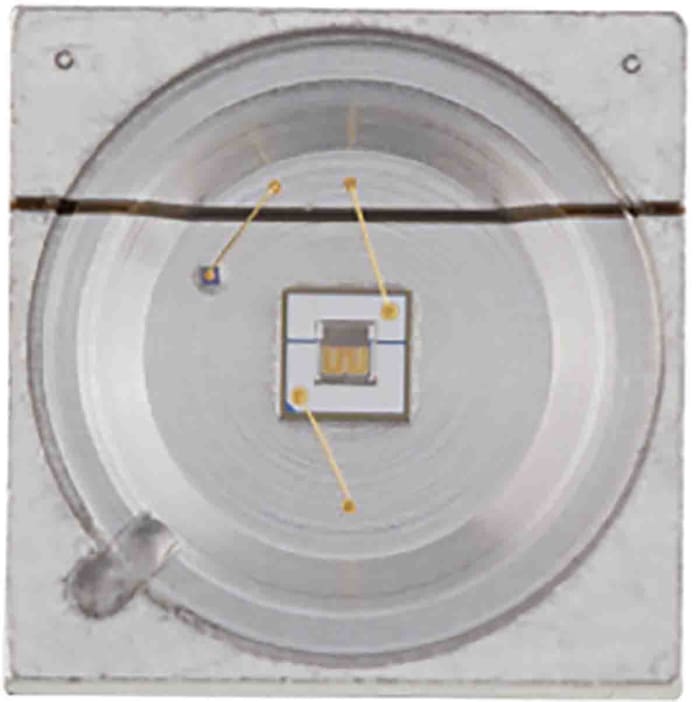

The Seoul Semiconductor CUD8AF4D is a Deep UV LED from the AAP series, emitting light with a peak wavelength between 270nm and 278nm, specifically 275nm. This LED is sealed in a full aluminum package with an optical transparent window and features an SMT solderable design with low thermal resistance.
Key electrical characteristics include a typical radiant flux of 19mW and a typical forward voltage of 6.4V at 600mA. The spectrum half width is 11nm, and the radiant angle is 120 degrees. The LED operates within a temperature range of -40°C to 60°C and has a junction temperature maximum of 120°C.
Designed for applications such as air and water sterilization, fluorescent spectroscopy, and chemical and biological analysis, the CUD8AF4D is suitable for various disinfection and analytical tools. It is available in a surface mount package with 2 pins and is supplied on tape and reel.
This product is lead-free and RoHS compliant. Its dimensions are 6.35mm in length and width, and 1.8mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CUD8AF4D comes in a surface mount AAP package measuring 6.35mm x 6.35mm x 1.8mm.
-40 to 60°C.
Yes, it is lead-free.
275 nm.
The typical radiant flux is 60 mW per the datasheet (at Ts=25°C, RH=30%) and 19 mW per the manufacturer page.
800 mA.
120 degrees.
