| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Weight |

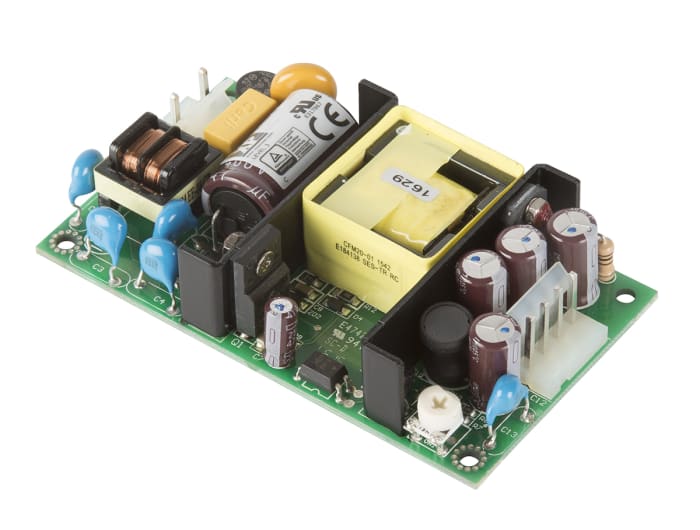

The XP Power CU20-12 is a 20W AC/DC converter designed for chassis mounting. It provides a single 12V output at 1.8A, suitable for various ITE (Commercial) applications.
This switching power supply features a universal input voltage range of 85V ac to 264V ac, making it versatile for global use. It boasts an efficiency of 80% and operates within a temperature range of 0°C to 65°C with derating. The compact dimensions of 20.32mm x 50.8mm x 88.9mm and a weight of 60g facilitate integration into space-constrained designs.
Compliance with standards such as CE, CSA22.2 no. 60950-1, and UL 60950-1 ensures reliability and safety. The CU20 series is known for its reliability and small size, offering adjustable or fixed output options and universal input capabilities.
The XP Power CU20-12 has a nominal output voltage of 12V.
The maximum output current for the CU20-12 is 1.8A.
The XP Power CU20-12 has a power rating of 20W.
The CU20-12 accepts a universal input voltage range of 85V ac to 264V ac.
The operating temperature range for the CU20-12 is 0°C to 65°C.
The dimensions of the CU20-12 are 20.32mm x 50.8mm x 88.9mm.
The CU20-12 complies with standards including EN 61000-4-2, CE, CSA22.2 no. 60950-1, EN 55022 Class B, EN 60950-1, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, FCC 20780 Level B, and UL 60950-1.
