| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

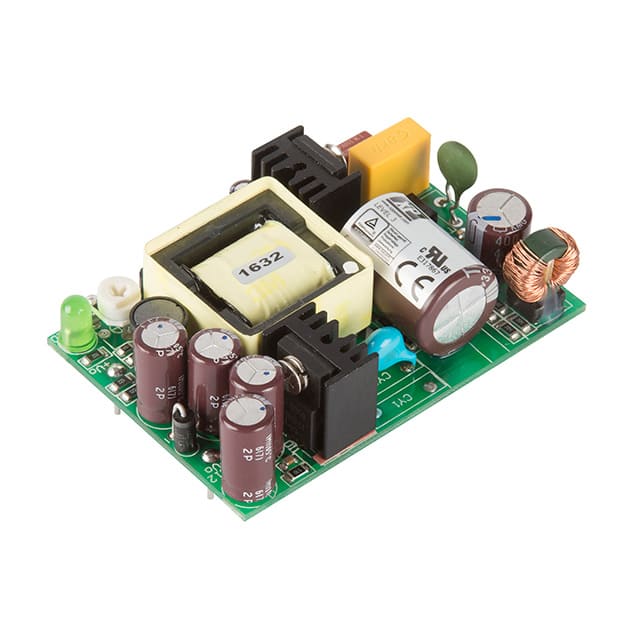

The XP Power CU15-09 is an open-frame AC/DC converter delivering 15W of power with a nominal output voltage of 9V. It accepts a wide input voltage range of 85-264 VAC and features a typical efficiency of 75%.
Designed for applications requiring reliable power conversion, this converter is suitable for ITE (Commercial) and Medical equipment. It offers a single output and is designed for Through Hole mounting in a 4-DIP Module package.
Key electrical specifications include a line regulation of 0.5% max and load regulation of 1.0% max. It also features overvoltage protection and short circuit protection in a hiccup mode. The operating temperature range is 0°C to 65°C with derating.
Compliance includes FCC20780 Level B and EN55032 Class B emissions standards, along with various immunity tests like ESD, Radiated Immunity, EFT/Burst, Surge, and Conducted Immunity. Safety approvals cover EN62368-1 and UL62368-1.
The input voltage range is 85-264 VAC (47-63 Hz) or 120-370 VDC.
The output is 9 VDC at 1.67A, providing 15W of power.
The operating temperature range is 0°C to 65°C with derating from full load at 45°C to no load at 65°C.
The package is a 4-DIP module with through-hole mounting.
It includes overvoltage protection (130-150% of Vnom, recycle input to reset) and short circuit protection (hiccup mode).
The input-to-output isolation is 3000 VAC.
The typical efficiency is 75%.
