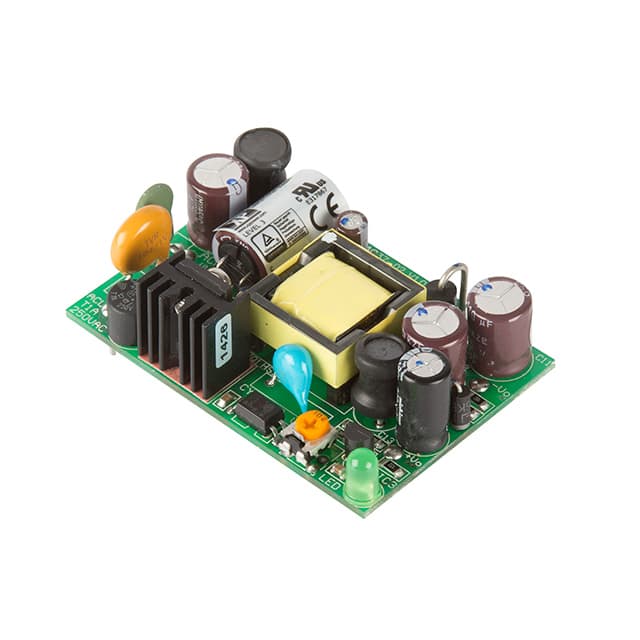

The XP Power CU10-09 is an open-frame AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a single 9V DC output with a nominal power rating of 10W and a current capability of 1.12A. The converter accepts a wide input voltage range of 85-264 VAC and operates with an efficiency of 72% typical.
Key electrical specifications include line regulation of 0.5% max and load regulation of 1.0% max. It offers ±5% output voltage trim and ±1% initial set accuracy. The unit has a start-up delay of 1.5s max and a hold-up time of 16ms typical. Protection features include overvoltage protection and short circuit protection in hiccup mode.
Designed for through-hole mounting, the CU10-09 has dimensions of 65.0mm x 45.0mm x 23.1mm. It operates within an ambient temperature range of 0°C to 65°C with derating. The converter meets various EMC and safety standards, including FCC20780 Level B and EN62368-1.
The CU10-09 provides a nominal output voltage of 9VDC and a nominal output current of 1.12A.
The input voltage range is 85-264VAC (47-63Hz).
The operating temperature range is 0°C to 65°C with derating from full load at 45°C to no load at 65°C.
It includes overvoltage protection (130-150% of Vnom, recycle input to reset) and short circuit protection (hiccup mode).
The CU10-09 is an open frame, through-hole 4-DIP module.
The CU10-09 is approved to EN62368-1 and UL62368-1.
The typical efficiency is 72%.
