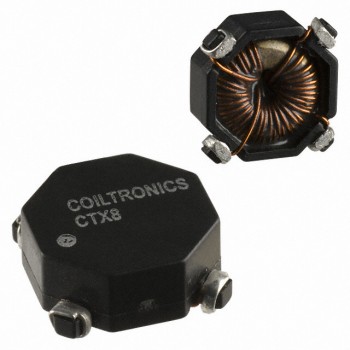

CTX8-2-R The Coiltronics CTX8-2-R is an inductor array with two coils, offering 7.94µH inductance in parallel configuration. It is designed for surface mounting.
Mfr Part #:

CTX8-2-R

Available from 1 distributors
Mfr Name: Coiltronics
Coiltronics
The Coiltronics CTX8-2-R is an inductor array with two coils, offering 7.94µH inductance in parallel configuration. It is designed for surface mounting.
✓ Total Stock: 600 pcs
$ Price Range: $0.19

CTX8-2-R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
600 pcs
On Request
600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CTX8-2-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Height
Mounting Type
Number of Coils
Operating Temperature
SVHC Present
Shielding
Tolerance
View Similar Products (0)

CTX8-2-R Description

Short technical summary and product information.

The Coiltronics CTX8-2-R is an inductor array belonging to the OCTA-PAC® series. This component features two coils with a parallel inductance rating of 7.94 µH and a series inductance of 31.77 µH, both with a tolerance of ±20%.



Designed for surface mounting, the CTX8-2-R has a nonstandard package size measuring 0.450" L x 0.450" W and a height of 0.235". It operates within a temperature range of -40°C to 85°C. The current rating is 2.6 A in parallel and 1.3 A in series, with a maximum DC resistance of 27 mOhm in parallel and 108 mOhm in series.



This unshielded inductor array is RoHS3 compliant and has an MSL rating of 1. It is suitable for various electronic applications requiring compact inductance solutions.

CTX8-2-R Quick Information

Product Type: Inductor Array
Series: OCTA-PAC®
Canonical Name: COILTRONICS CTX8-2-R Inductor Array
Subcategory: Fixed Inductors

CTX8-2-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CTX8-2-R Estimated Pricing

Qty Low High
1+ $0.19 $0.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

CTX8-2-R Features

  • Two-coil inductor array.
  • 7.94µH parallel inductance.
  • Surface mount package.
  • RoHS3 compliant.
  • Operating temperature -40°C to 85°C.

CTX8-2-R Applications

  • Ideal for multi-phase buck converter input filtering.
  • Used in automotive power distribution modules.
  • Suitable for industrial motor drive circuits.
  • Applied in telecom power supply designs.

CTX8-2-R FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the CTX8-2-R in parallel?

The inductance of the CTX8-2-R connected in parallel is 7.94 µH.

What is the current rating for the CTX8-2-R in parallel?

The current rating for the CTX8-2-R connected in parallel is 2.6 A.

What is the DC Resistance (DCR) of the CTX8-2-R in parallel?

The maximum DC Resistance (DCR) for the CTX8-2-R connected in parallel is 27 mOhm.

What is the operating temperature range for the CTX8-2-R?

The operating temperature range for the CTX8-2-R is -40°C to 85°C.

What type of package does the CTX8-2-R use?

The CTX8-2-R uses a Tape & Reel (TR) package and is designed for surface mounting.
