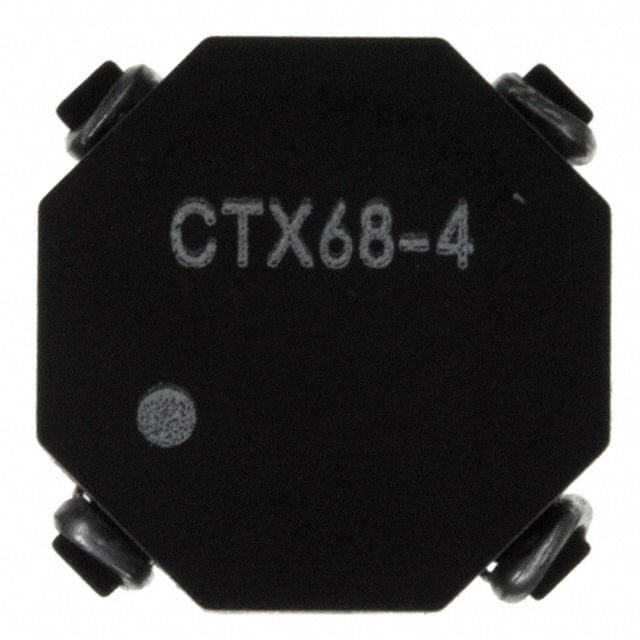

CTX68-4-R The Coiltronics CTX68-4-R is an inductor array featuring two coils with a parallel inductance of 67.08 µH. It is designed for surface mount applications.
Mfr Part #:

CTX68-4-R

Available from 1 distributors
Mfr Name: Coiltronics
Coiltronics
The Coiltronics CTX68-4-R is an inductor array featuring two coils with a parallel inductance of 67.08 µH. It is designed for surface mount applications.
✓ Total Stock: 10 pcs
$ Price Range: $0.19

CTX68-4-R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CTX68-4-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Height
Mounting Type
Number of Coils
Operating Temperature
Shielding
Tolerance
View Similar Products (0)

CTX68-4-R Description

Short technical summary and product information.

The Coiltronics CTX68-4-R is an inductor array belonging to the OCTA-PAC series. This component features two coils, offering a parallel inductance of 67.08 µH and a series inductance of 268.32 µH. It is rated for a nominal current of 1.2 A in parallel configuration and 600 mA in series.



The inductor array has a DCR of 157 mOhm maximum in parallel and 630 mOhm maximum in series. It operates within a temperature range of -40°C to 85°C and has a tolerance of ±20%. The dimensions are 0.550 inches by 0.550 inches, with a height of 0.250 inches.



Designed for surface mounting, the CTX68-4-R comes in a Nonstandard package, supplied on Tape & Reel (TR). Its unshielded construction makes it suitable for various electronic applications where space and performance are critical.

CTX68-4-R Quick Information

Product Type: Inductor Array
Series: OCTA-PAC
Canonical Name: Inductor Array, 2 Coils, 67.08 µH, Surface Mount
Subcategory: Fixed Inductors

CTX68-4-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CTX68-4-R Estimated Pricing

Qty Low High
1+ $0.19 $0.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

CTX68-4-R Features

  • Dual coil inductor array.
  • 67.08 µH parallel inductance.
  • 1.2 A parallel current rating.
  • Surface mountable design.
  • Operating temperature range -40°C to 85°C.

CTX68-4-R Applications

  • Suitable for signal filtering.
  • Used in power supply circuits.
  • Ideal for RF applications.
  • Component in control modules.

CTX68-4-R FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the CTX68-4-R in parallel configuration?

The parallel inductance is 67.08 µH.

What is the maximum current rating for the CTX68-4-R in parallel?

The parallel current rating is 1.2 A.

What is the operating temperature range for this inductor array?

The operating temperature range is -40°C to 85°C.

What are the dimensions of the CTX68-4-R?

The dimensions are 0.550 inches by 0.550 inches.

How is the CTX68-4-R mounted?

It is designed for surface mounting.

What type of package is the CTX68-4-R supplied in?

It is supplied in a Nonstandard package on Tape & Reel (TR).
